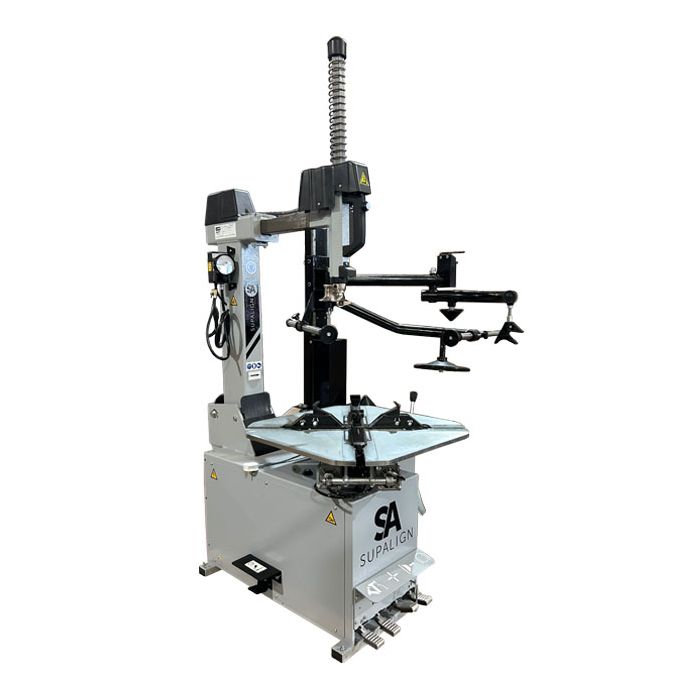

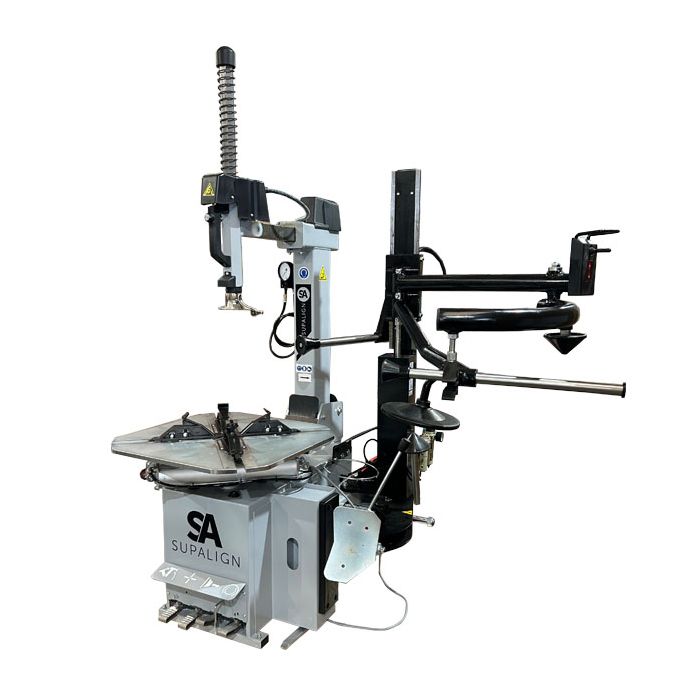

The Ravaglioli G7641D.24 s is a professional automatic tyre changer with tilt tower. Chucking table with double adjustable clamp position 10″ – 24″.
The frame is large and reinforced, to grant utmost rigidity to the structure and chucking table.
The gear box is installed between two steel plates, to avoid flexion during operation.
The extra height of the vertical post and tool shaft allow operation on tyres up to 15″ (381 mm) width.
New standard high adherence clamp with renewable spikes
Fine setting
Aluminium cylinder with double operation


G7641D.24

Specification
Max. Torque 1200 Nm (885 ft.lbs)
Outer Clamping Range 10” – 24”
Inner Clamping Range 12” – 26.5”
Max. Wheel Diameter 41”
Max. Rim Width 15”
Bead Breaker Force 8,000lbs (3,600kg)
Air Supply 8 – 10 bar (116 – 145 psi)
Power Inverter Motor 0.75 kW (1 Hp)
Power Supply 200 – 240 V, 50 – 60 Hz
Phases 1 Ph
Typical Current Draw 10 A
Rotation Speed 0 – 16 rpm
