Line Light 6 - Lift Light Kit

Code: 03.5200



LINE LIGHT 6 is for universal application on lifts for trucks and other heavy vehicles providing you with bright illumination exactly where you need it.

LINE LIGHT provides an extremely powerful illumination of the entire undercarriage, almost double illumination compared to traditional 36W fluorescent tubes. The design is slim and compact design (only ø25mm).

LINE LIGHT concentrates the light in a 75° beam angle, avoiding blinding during work. The lamp itself can be turned to provide the optimum lighting angle.

As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself. All basic fittings are supplied with each kit together with power supplies and cable.

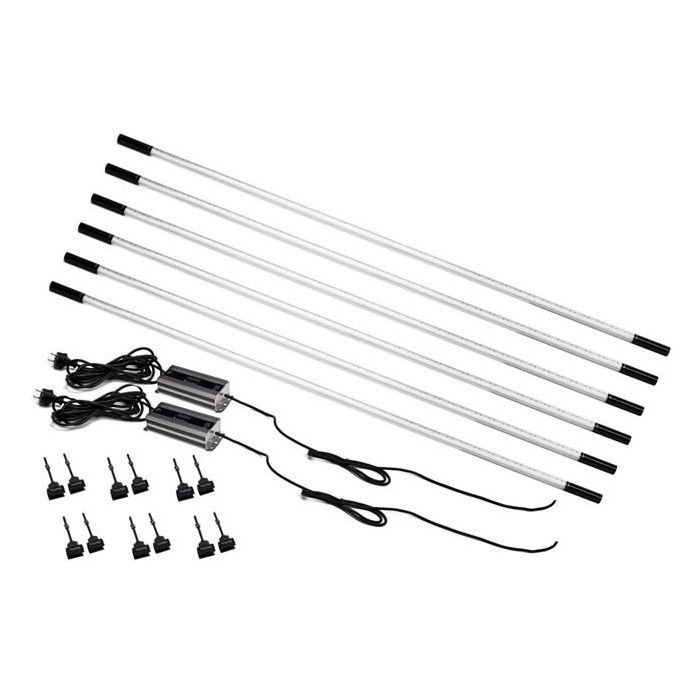

LINE LIGHT 6 consists of 6 lighting units 1630mm incl 2 pcs 80W power supply units, 8 m cable and complete suspension fittings.

LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

The design of LINE LIGHT 6 is unique and covered by EU design patent RCD No 1882523.

Easy installation with all fittings supplied:

6 x 216 SMD LEDs
6 x 14w power consumption
6 x 1000 LUX
6 x 1100 Lumen

Additional Info

Additional Info

Weight 0.0000
Country of Manufacture N/A
Size N/A
