Line Light 4 - Lift Light Kit

Code: 03.5201

Be the first to review this product

Line Light provides a bright powerful illumination undercar.

Almost double the illumination compared to traditional 36W tubes.

The Slim & compact design allows for the jacking beam to pass

on 4 post & scissor lift applications.



Easy installation with all fittings supplied:



4 x 216 SMD LEDs

4 x 14w power consumption

4 x 1000 LUX

4 x 1100 Lumen

IP67
£595.00

Description

Details

LINE LIGHT 4 is for universal application on 4-post lifts providing you with bright illumination exactly where you need it.

LINE LIGHT provides an extremely powerful illumination of the entire undercarriage, almost double illumination compared to traditional 36W fluorescent tubes. The slim and compact design (only ø25mm) leaves space for the center jack to pass.

LINE LIGHT concentrates the light in a 75° beam angle, avoiding blinding during work. The lamp itself can be turned to provide the optimum lighting angle.

As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself. All basic fittings are supplied with each kit together with power supply and cable. The pre-defined LINE LIGHT kit is considered universal and will fit the majority of all automotive 4-post lifts, regardless of the manufacturer or brand.

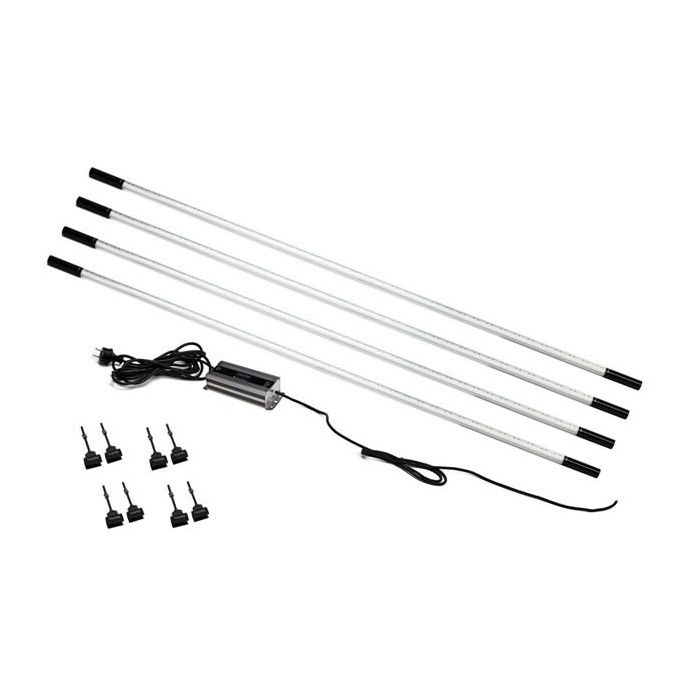

LINE LIGHT 4 consists of 4 lighting units 1630mm incl 80W power supply unit, 8 m cable and complete suspension fittings.

LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

Easy installation with all fittings supplied:

4 x 216 SMD LEDs
4 x 14w power consumption
4 x 1000 LUX
4 x 1100 Lumen
IP67
