Waeco Automatic Air Conditioning Unit

Code :
ASC2300G
ea (Each)
Hassle Free Returns

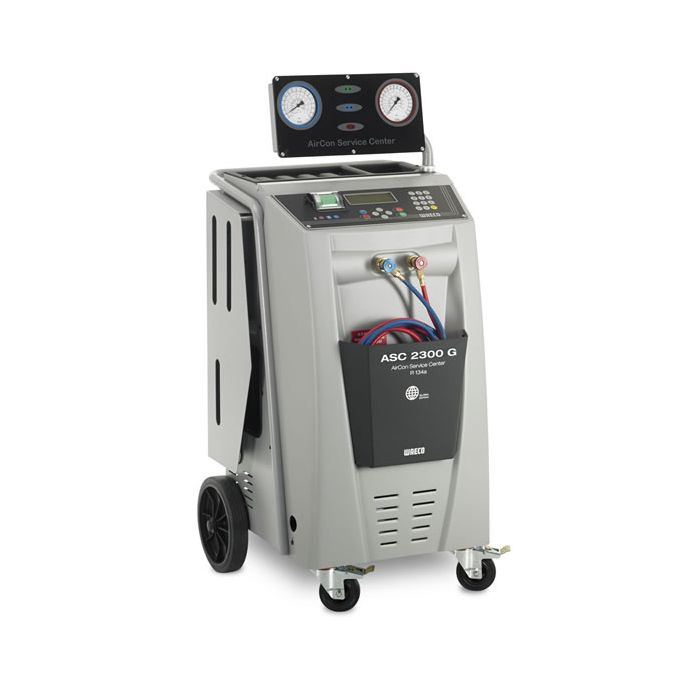

WAECO ASC 2300 G Fully Automatic Aircon Service Machine Suitable for R134a

With patented feeding system for fresh oil and uv additive

Ease of use at its best. Designed for professional A/C service on trucks and cars, the ASC 2000 G minimises operator effort and throughput time. Prior to system start the operator can read the oil level from the display.
Afterwards, the following processes are performed fully automatic:

Refrigerant recovery and recycling, residual pressure measurement, used oil drainage, evacuation, leak check, fresh oil and UV additive charging, refrigerant charging with charging amount compensation of the service hoses.

Additional ASC 2000 G benefits:
Large charging cylinder storage capacity (21 kg), dust cover included as standard, accurate oil management with 4 separate micro scales.

Quoted Price includes for:
Delivery,
Commissioning
Brief Product Training.

Unit is delivered c/w:
500ml Universal Oil (Not a full cannister)
236ml Tracer UV Dye (Not a full cannister)
Safety Goggles
Gloves
Dust Cover

•Charging cylinder storage capacity: 21 kg, vacuum pump capacity: 5 cars/h
•Patented feeding system for fresh oil and UV additive incl. test bottles
•Print-out of important service data, several print-outs possible
•Dust cover included
•Fully automatic refrigerant recycling, oil and additive management
•Automatic vacuum check
•Automatic charging of leak detection additive
•Integrated refrigerant charging and recovery amount management
•Integrated charging amount database
•Complies with SAE J 2099 and SAE J 2788
•Personalised charging amount database
•Operator guidance via large display and manometer
•Swivel and tilt manometer panel (patented)
•Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
•Special, 8-bearing weighing platform
•Special air conditioner flush function
•500 ml used oil container for longer change intervals
•Also suitable for German-make hybrid vehicles
•Suitable for Asian-make hybrid vehicles when optional flushing kit is installed - see 8885200270
•USB interface
•Soft graphic display
• ASC 2300 G

*Was ASC2000
