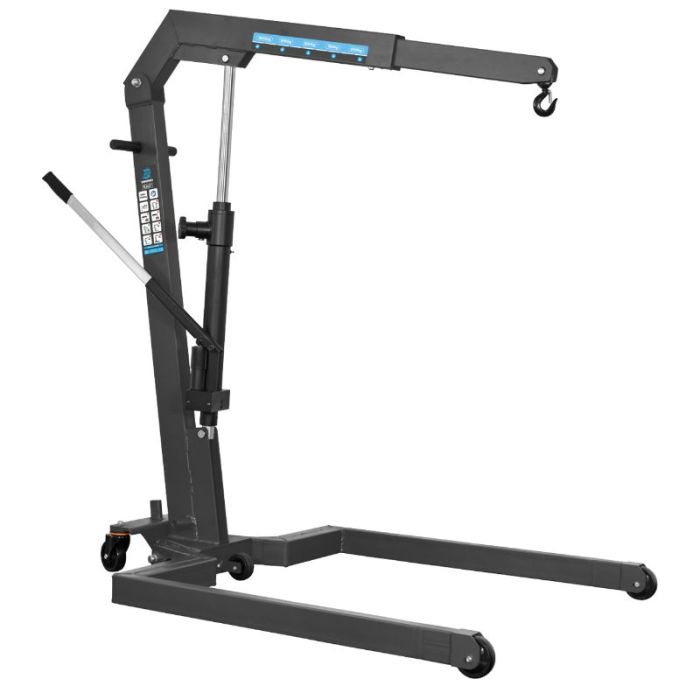

• FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
• SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.
• CONTROLLABLE RELEASE - Manually controlled descent speed.
• FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.
• TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.
• NON FLOOR MARKING WHEELS - Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
• 3 Year guarantee*
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Height Jib Down:n/a
Height Legs Folded:1550mm
Height of Frame:105mm
Length Legs Extended:n/a
Length of Jib Position 1:960mm
Length of Jib Position 2:1053mm
Length of Jib Position 3:1152mm
Length of Jib Position 4:1250mm
Length of Jib Position 5:1350mm
Length: 1600mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 900kg
Lifting Capacity in Position 3: 800kg
Lifting Capacity in Position 4: 700kg
Lifting Capacity in Position 5: 600kg
Max. Lift Ht at Jib Position 1: 2080mm
Max. Lift Ht at Jib Position 2: 2140mm
Max. Lift Ht at Jib Position 3: 2190mm
Max. Lift Ht at Jib Position 4: 2250mm
Max. Lift Ht at Jib Position 5: 2300mm
Rear Width: 390mm
Width Front Frame: 1129mm
Width Inside Front Frame: 1025mm
