Track Rod Setting Tool Kit

£36.99 £44.39
Code :
TBT2792
Hassle Free Returns
Track Rod Setting Tool Kit

Changing of the tie rod ends is possible without additional alignment.
Reduces the workload when changing tie rods.
For replacement of defective tie rod head.
Allows precise adjustment of new joint.
Instruction
1. Remove the nut from the tie rod and drive the tie rod out of the hinge bearing.
2. Clamp the main unit onto the axial tie rod.
3. Slide suitable caliper into the main unit and shove the caliper’s bore hole over the ball pin of the tie rod end.
4. If the caliper is properly attached to the tie rod end, lock the slider with the locking screw.
5. The caliper can be moved upwards over the slider bolt until the ball head is fully exposed and can be disassembled.
6. Screw the new end of the tie rod onto the axial tie rod until the ball head of the end of the tie rod fits into the bore hole of the caliper exactly.

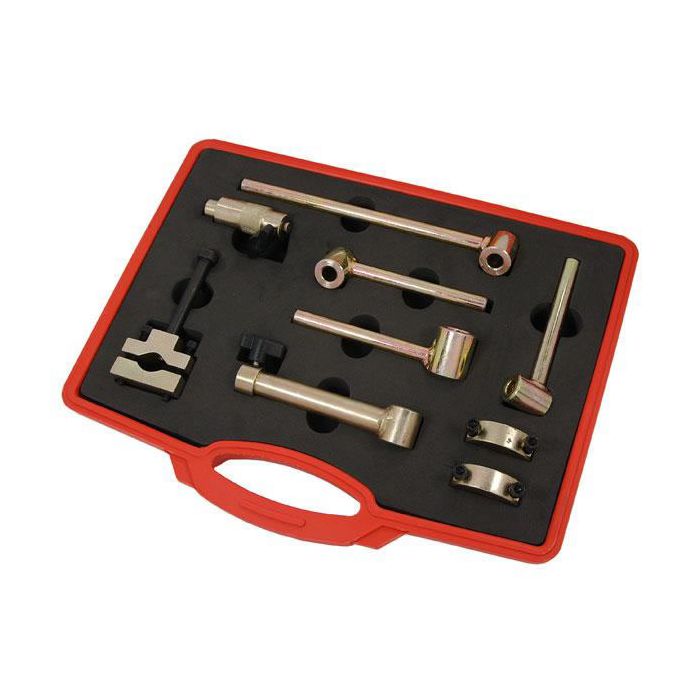

Specifications
• Main unit with clamping device
• 10 & 12mm caliper , short and long type
• 17mm caliper for VW cars
• Fixing unit
• Caliper for depth measuring
More Information
Weight 3.30
