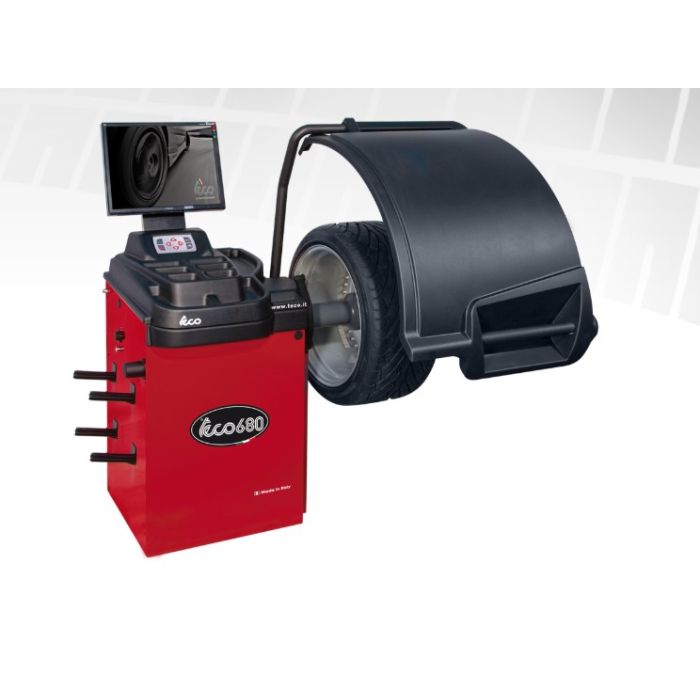

ELECTRONIC WHEEL BALANCER with LCD monitor (optional) and new internal digital sensor for automatic entry of distance and rim diameter parameters with automatic balancing program selection. The machine is designed for wheel balancing of cars, vans and, with proper optional accessories, motorbikes having a maximum weight of 85 kg with machine fixed to the ground.

TECO 680 provides for working cycle activation through wheel protection lowering, electronic wheel holder shaft locking and automatic balancing position search ,and is supplied with 7 ALU programs for light alloy rim balancing, including 2 ALU P "Precision" programs. Available with "LASER & LIGHT KIT" option.

Technical data

MAX RIM DIAMETER: 28" (manually settable 35")
MAX RIM WIDTH: 20"
MAX WHEEL WEIGHT: 85 Kg
SHAFT DIAMETER: 40 mm
DISTANCE MACHINE-RIM: 275 mm (11")
BALANCING SPEED: 90-130 rpm
POWER SUPPLY: 1PH/50-60HZ
NET WEIGHT: 82 Kg (180 lbs)
