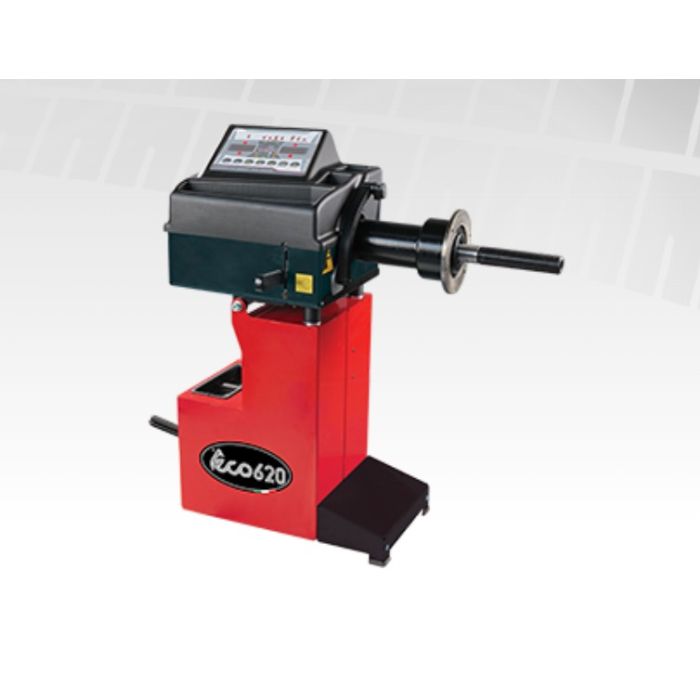

TECO 620 - Hand Spin Wheel Balancer
SKU
TECO620HANDSPIN
ea (Each)
Hassle Free Returns
The Teco 620 tilting manual electronic hand spin wheel balancer is an ideal choice for any business requiring a mobile wheel balancing solution with limited space options.
The Teco 620 wheel balancer is equipped with a 12-volt electrical system (as found in vehicles) making the Teco 620 the obvious choice for a mobile tyre service provider or any business that has restrictions of mains power connections.
This particualr version of the Teco 620 has a tilting body mechanism which allows the wheel balancer shaft to be lifted up out of the way. This make the Teco 620 hand spin balancer even more viable for mobile tyre fitting vehicles as can be installed into a smaller workspace
Designed with a “Hand Spin” shaft rather than the conventional motor drive means the Teco 620 wheel balancer features a small cabinet design providing a minimal overall working footprint. The reduction of componentry reduces space required in its design. Producing a wheel balancer that is a great space saver and an ideal choice for any mobile tyre service activities. Or for garages where space is at a premium.
Operational programs:
7 ALU programs dedicated to alloy rims.
3 motorcycle balancing programs.
“Hidden weight” program for alloy rims.
“Opt” program, identifies the best coupling between rim and tyre thus reducing the overall running noise levels.
“Shift plane” and “Bike wheel split” programs for alloy rims.
The Teco 620 comes as standard with a 3 cone kit (diameter 40-111 mm), quick release nut, pliers and wheel gauge calliper.
The Teco 620 has a manual data input. Operators acquire wheel dimension data from the displays connected to the gauge arm.
For any further information or queries regarding this product please contact us where we will help answer your queries.
Technical Data
BALANCING SPEED: 98 rpm
MAXIMUM CALCULATED IMBLANCE VALUE: 999 g
RESOLUTION: 1 g
AVERAGE SPIN TIME: 5 s
SHAFT DIIAMETER: 40 mm
SETTABLE RIM WITH VALUES: 1,5” ÷ 20”
SETTABLE WHEEL DIAMETER VALUES: 1” ÷ 35” Manual or 10” ÷ 28” Automatic
MAX WHEEL/MACHINE DISTANCE: 250 mm
MAXIMUM WHEEL DIAMETER (WITHOUT GUARD): 1118 mm
MAXIMUM WHEEL WEIGHT 85 kg (*)
SUPPLY VOLTAGE: 115/230V - 1Ph
OVERALL POWER ABSORBITION: 100 W (MO) - 10 W (HS)
MACHINE WEIGHT: 67 kg
The Teco 620 wheel balancer is equipped with a 12-volt electrical system (as found in vehicles) making the Teco 620 the obvious choice for a mobile tyre service provider or any business that has restrictions of mains power connections.
This particualr version of the Teco 620 has a tilting body mechanism which allows the wheel balancer shaft to be lifted up out of the way. This make the Teco 620 hand spin balancer even more viable for mobile tyre fitting vehicles as can be installed into a smaller workspace
Designed with a “Hand Spin” shaft rather than the conventional motor drive means the Teco 620 wheel balancer features a small cabinet design providing a minimal overall working footprint. The reduction of componentry reduces space required in its design. Producing a wheel balancer that is a great space saver and an ideal choice for any mobile tyre service activities. Or for garages where space is at a premium.
Operational programs:
7 ALU programs dedicated to alloy rims.
3 motorcycle balancing programs.
“Hidden weight” program for alloy rims.
“Opt” program, identifies the best coupling between rim and tyre thus reducing the overall running noise levels.
“Shift plane” and “Bike wheel split” programs for alloy rims.
The Teco 620 comes as standard with a 3 cone kit (diameter 40-111 mm), quick release nut, pliers and wheel gauge calliper.
The Teco 620 has a manual data input. Operators acquire wheel dimension data from the displays connected to the gauge arm.
For any further information or queries regarding this product please contact us where we will help answer your queries.
Technical Data
BALANCING SPEED: 98 rpm
MAXIMUM CALCULATED IMBLANCE VALUE: 999 g
RESOLUTION: 1 g
AVERAGE SPIN TIME: 5 s
SHAFT DIIAMETER: 40 mm
SETTABLE RIM WITH VALUES: 1,5” ÷ 20”
SETTABLE WHEEL DIAMETER VALUES: 1” ÷ 35” Manual or 10” ÷ 28” Automatic
MAX WHEEL/MACHINE DISTANCE: 250 mm
MAXIMUM WHEEL DIAMETER (WITHOUT GUARD): 1118 mm
MAXIMUM WHEEL WEIGHT 85 kg (*)
SUPPLY VOLTAGE: 115/230V - 1Ph
OVERALL POWER ABSORBITION: 100 W (MO) - 10 W (HS)
MACHINE WEIGHT: 67 kg
