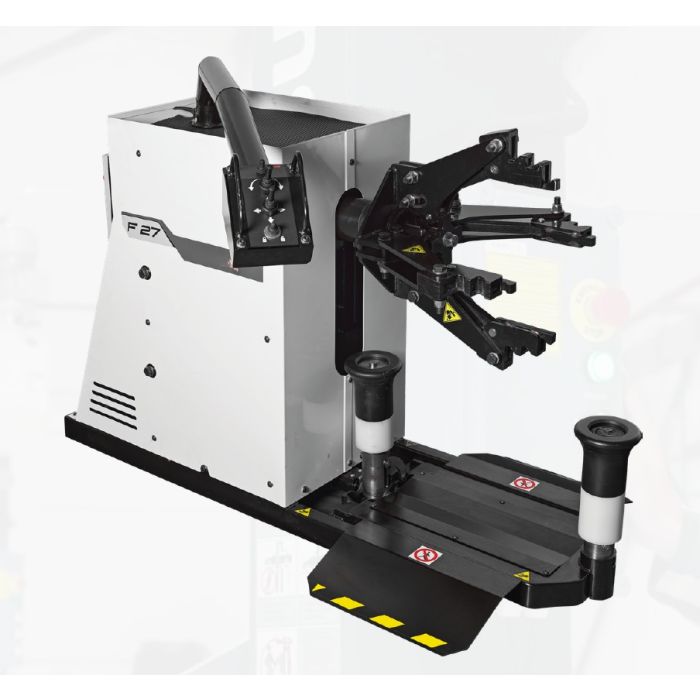

Supalign F27 Truckmount
SKU
F27
ea (Each)
Hassle Free Returns
Supalign Tyre Changer for, Trucks, Vans and Buses.
Equipped with command unit, automatic roller, double tubeless rollers and platform traslation.
Standard Accessories:
Special Truck Lever
Steel Pliers
Technical Information
Rim locking capacity: 14”- 27”
Locking from the central hole: 80mm
Max. wheel diameter: 1200 mm
Max wheel width: 500 mm
Max Wheel weight: 300 Kg.
Bead breaking power: 22.000 N
Rotation speed: 3,5 - 7 rpm 400V/3Ph/50Hz // 7 rpm 220V/1Ph/50-60Hz
Min. Size: Lx1600, Wx600, Hx1000 mm
Max.Size: Lx2350, Wx600, Hx1000 mm
Noise level: <70±3 dB(A)
Net weight: 375 kg.
Equipped with command unit, automatic roller, double tubeless rollers and platform traslation.
Standard Accessories:
Special Truck Lever
Steel Pliers
Technical Information
Rim locking capacity: 14”- 27”
Locking from the central hole: 80mm
Max. wheel diameter: 1200 mm
Max wheel width: 500 mm
Max Wheel weight: 300 Kg.
Bead breaking power: 22.000 N
Rotation speed: 3,5 - 7 rpm 400V/3Ph/50Hz // 7 rpm 220V/1Ph/50-60Hz
Min. Size: Lx1600, Wx600, Hx1000 mm
Max.Size: Lx2350, Wx600, Hx1000 mm
Noise level: <70±3 dB(A)
Net weight: 375 kg.
