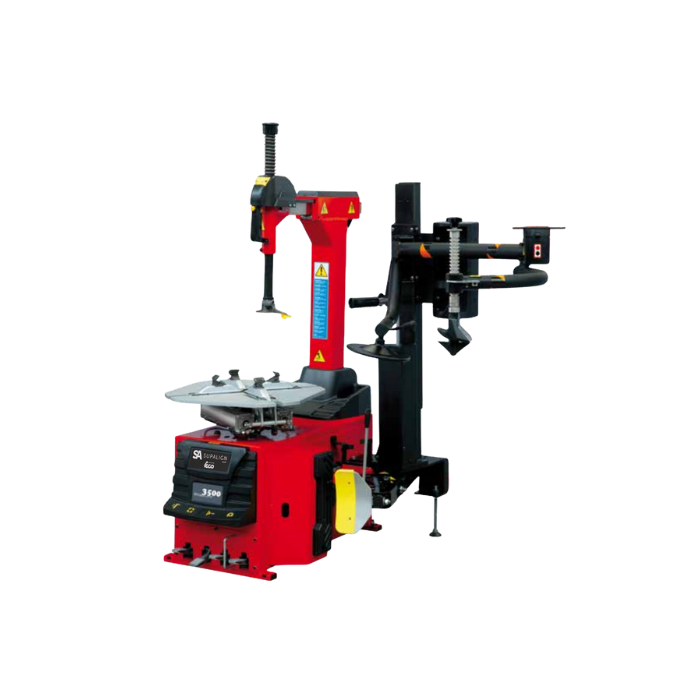

An entry level tyre machine for working on car and light commercial vehicles. Suitable for working on wheel diameters from 10″ to 23″ without any adaptors or mechanical adjustment. The Teco 3500 Stepline is an Automatic class tyre changer with a tilt back type rear support column with some technical solutions such as:-

Double regulation system for take off clearances.
Double acting bead breaker cylinder.
Special clamping system geometry.
The Teco 3500 Stepline Automatic Tyre Changer is supplied as standard with protective (nylon 6-6) parts. These cover the elements that could cause damage to the rim and comprises of the following:

Jaw clamp covers.
Bead breaker blade cover.
Upper and Lower de-mount head inserts.
Standard tyre Lever protective sleeve.
All of the protective elements listed above as well as additional protective fitting tools, are available.

Teco 3500 Stepline AutomaticTyre Changer comes complete with the HTB21 assist arm. Used to minimise effort to fit extreme low profile and run flat tyres.

Clamping capacity 10''-21''
External clamping capacity 10''-21''
Internal clamping capacity 12''-23''
Max wheel diameter 1.040 mm
Max wheel width 3"-12"
Bead breaker force 1,500 N
Turntable speed 8 rpm (8-15 rpm 2sp)/ Single Speed
Noise level < 70 ± 3 dB(A)
Working pressure 8-10 Bar (116-145 psi)
1-phase el. motor 0,75 kW (1,0 Hp)
