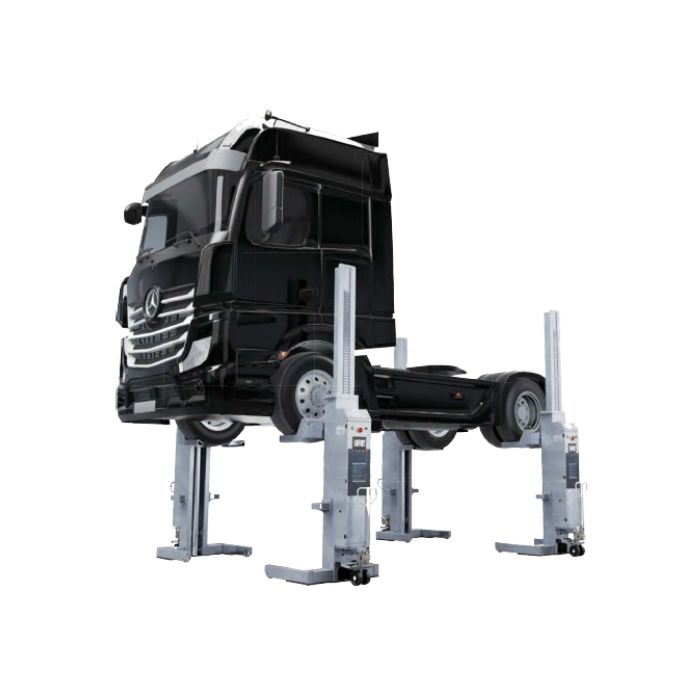

Supalift Heavy Duty Galvanised Mobile Column Lift - Set of 4

Designed for wet and humid environments such as wash bays, the HDMG galvanised mobile columns offer a total lifting capacity of 32,000kg (8,000kg per column) for buses, coaches, vans, trucks and HGVs.

Key Features:

- Capacity: 8,000kg per column / 32,000kg per set of 4
- Corrosion resistant: hot-dip galvanised structural components, stainless steel control cover and anti-corrosion fasteners
- IP65 protection - resistant to water spray
- Cordless, battery powered - no trailing cables, reducing trip hazards and improving mobility around the workshop
- Wireless radio control - operate the full set safely from any column
- HMI touch screen for simple column linking and mode selection
- Adjustable wheel pick-up forks to suit tyre diameters from 500mm to 1250mm
- Electric locking release
- CE marked
Technical Specification:
- Max. lifting height: 1800mm
- Min. height: 159mm
- Full rise time under rated load: approx. 85 seconds
- Motor power: 2.2kW per column
- Oil reservoir: 14 litres per column
- Relief pressure: 22MPa
- Control voltage: 24V DC
- Charger rating: AC 110-240V, single phase (per column)
- Overall column height: 3957mm
- Column footprint: 1309mm x 1100mm
