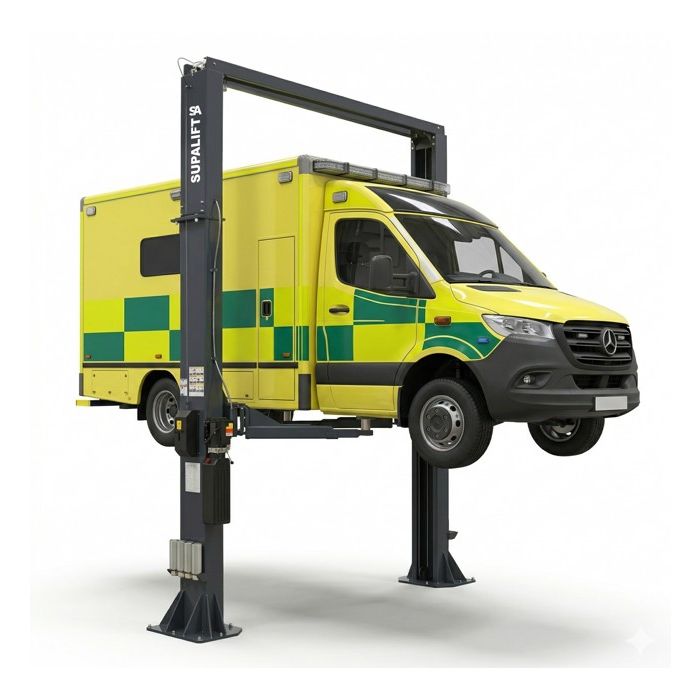

Supalift Range by Forward (Ravaglioli) Hydraulic 6.5 2 Post Lift

Electro-Hydraulic 2 post lift without base, for works trucks, vans and small buses

Standard 2-stage front and rear arms that extend and retract from 61" to 38"

Three height configurations with adjustable options for taller vehicles and a wider stance makes it easier to service wider truck bodies.

Lift comes standard with:
Large threaded truck adaptors 250mm and 4 x adaptor extensions 130mm
Support Brackets for Spacers

Technical Data:-
Capacity: 6500 kg
Overall Height: 5035 mm
Inside Columns: 3038 mm
Drive-Thru Width: 2752 mm
Min. front arm length: 762 mm
Max. front arm length: 1550 mm
Min. rear arm length: 762 mm
Max. rear arm length: 1550 mm
Min. pad height: 140 mm
Max. pad height: 360 mm
Lifting time: 54 s
Power supply: 400 V | 50-60 Hz | 3 Ph
