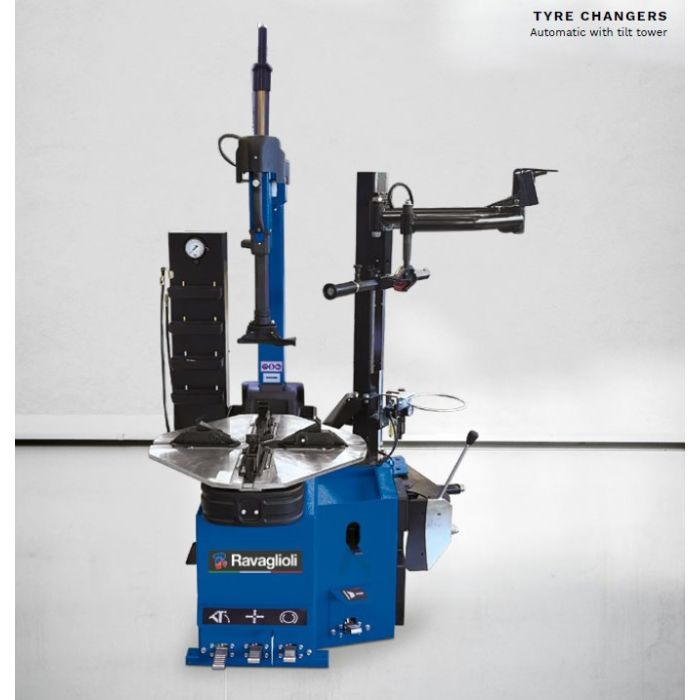

The Ravaglioli SG45.26D Plus is a professional automatic tyre changer with tilt tower, designed for high-volume car and light commercial applications. Featuring a strong frame and reinforced tilt column, it ensures safe handling of up to 45” wheels. The inverter-driven motor provides variable rotation speed (0–16 rpm), automatically reducing speed under increased bead stress to protect tyres and rims. With 26” external clamping capacity, powerful 11,900N bead breaker force, and user-friendly pedal layout, the SG45.26D Plus delivers reliability, precision, and efficiency for busy workshops.


SG45.26D Plus

Specification
Max. Torque 1200 Nm (885 ft.lbs)
Outer Clamping Range 10” – 26”
Inner Clamping Range 13” – 28.5”
Max. Wheel Diameter 45”
Max. Rim Width 16”
Max. Wheel Width 16”
Bead Breaker Force 11,900 N (2,675 lbf)
Air Supply 8 – 10 bar (116 – 145 psi)
Power Inverter Motor 0.75 kW (1 Hp)
Power Supply 200 – 240 V, 50 – 60 Hz
Phases 1 Ph
Typical Current Draw 10 A
Rotation Speed 0 – 16 rpm
