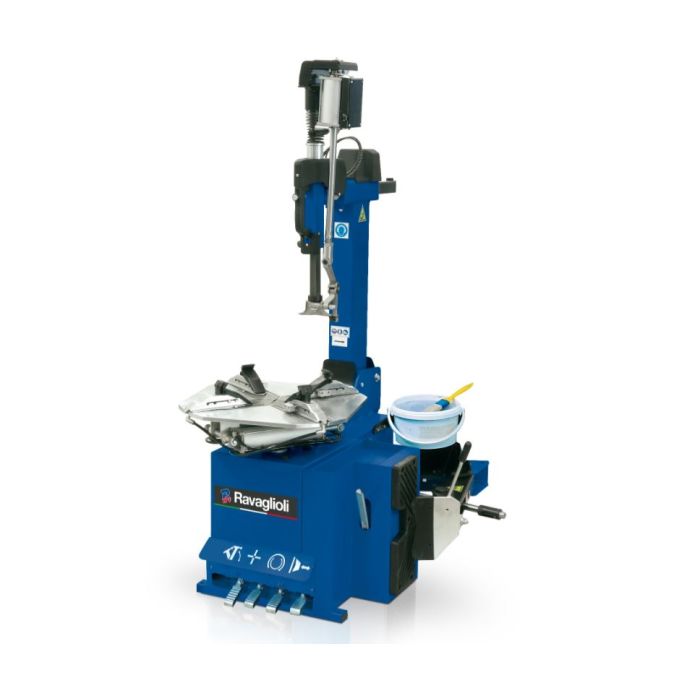

Model with tubeless tyre inflation system. The device is activated by a single pedal command with two positions.

Patented lever-freetool: Fits between the tyre and rim and takes hold of the bead, gradually lifting it without the aid of bead-lifter levers.
The exclusive SLIVO working movement allows to catch the lower bead with no use of the PLUS device.
The frame is large and reinforced, to grant the utmost rigidity to the structure and chucking table. The gear box is installed between two steel plates, to avoid flexion during operation.
Bead breaker
The bead breaker opening can be adjusted to work with extreme rapidity
Galvanised cylinder with double operation
Self-centering chuck
Two-way rotation
High torque
High clamping force (two pistons)

Patented leve-free tool
Chucking table with adjustable positioning of clamps
For rims with diameter from 10' to 26' (12”-28,5”) and max. width 15”
For all tire types with max. diameter 45” (1143mm)
Electric motor with continuous speed control
Double-effect pneumatic side bead-breaker
Bead -breaker adaptor with tilting adjustment
Tool tray
Pedal inflation with manometer and balancing valve
Tubeless tire inflator device
Complete with:
Plastic protection for ALU rims
Bead depressor helper arm (PLUS83H/D)

Single Phase
