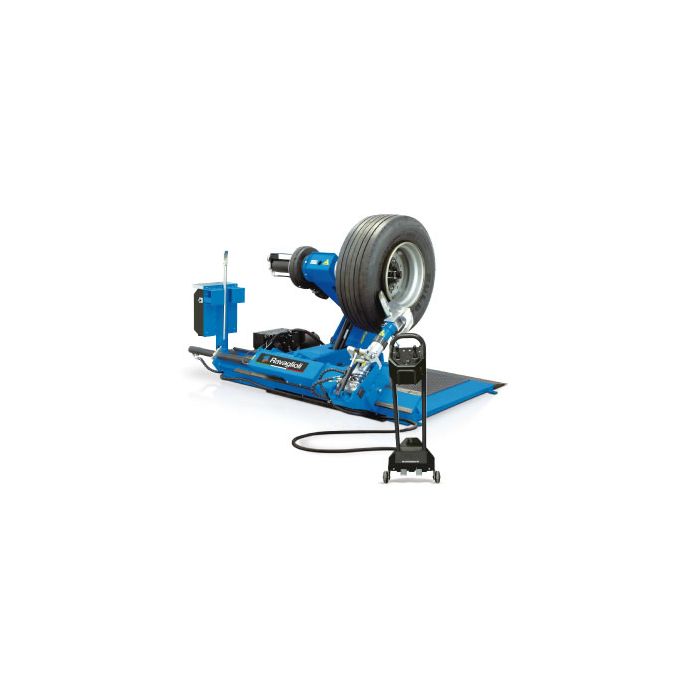

The G9256.11SL is a Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles. The dimensions and work strokes are such as to ensure maximum efficiency for the entire range of tyres. Thanks to its considerable bead breaking force mounting and demounting are effortless, even when working with tyres which have been left on the rim for a long period of time in construction sites or mines.

Chucking unit rotation motor (kW) 1,3 - 1,85
Hydraulic drive unit motor (kW) 1.85 - 2.5
Rim diameter with G108A12 11" - 56 "
Max. allowed wheel diameter 2360 mm
Max. wheel width 1100mm (59")
Weight 1020kg
Bead Breaker Power 32000Nm
Max Wheel Weight 2000kg
Max Torque to Chuck 5300Nm

Optional Accessories:
G108A1
G108A12
G108A5
G90A6
G108A3
G108A13
G108A34
G108A16
G800A37
