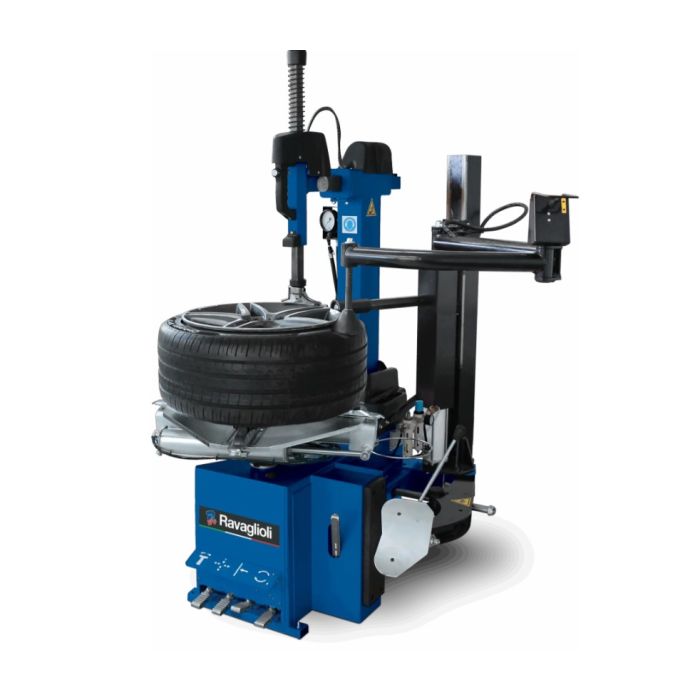

Ravaglioli Automatic Tyre Changer with mounting head and mounting lever, automatic, 2 speeds (max. 13 rpm), passenger car, chucking table with double adjustable clamp position, rim diameter 11 – 24.5″, new reinforced frame, max. rim width 381 mm.

Chucking table with double adjustable clamp position 10″ – 24″.

The frame is large and reinforced, to grant utmost rigidity to the structure and chucking table.

The gear box is installed between two steel plates, to avoid flexion during operation.

The extra height of the vertical post and tool shaft allow operation on tyres up to 15″ (381 mm) width.

New standard high adherence clamp with renewable spikes

Fine setting

Aluminium cylinder with double operation

Technical Specification
Min Clamping Capacity: 10"
Max Clamping Capacity: 24.5"
Internal Clamping: 12" -24.5"
External Clamping: 10"-22"
Max Rim Widith: 15"
Min Rim Diameter: 11"
Max Rim Diameter: 24.5"
Max Wheel Diameter: 1092mm
Max Wheel Widith: 381mm
Max Wheel Weight: 80KG
3 Phase
