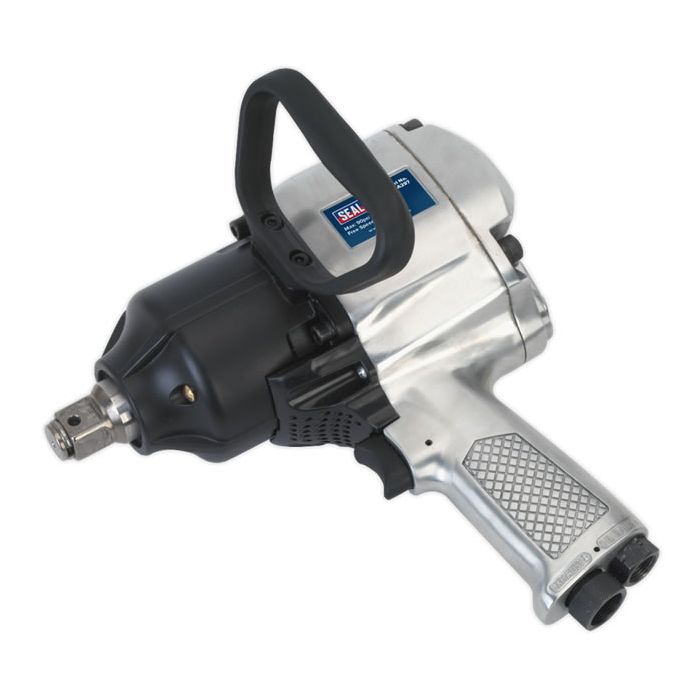

Pistol Type Air Impact Wrench 1"Sq Drive
Pin clutch mechanism provides smooth operation reducing vibration, whilst still creating a high torque output.
Control direction and power via 4-position lever adjustment on rear of wrench.
Supplied with side handle for added control.
Suitable for commercial and agricultural vehicle use.
Air Consumption: 15cfm
Breakaway Torque: 1500lb.ft(2040Nm)
Drive: 1"Sq
Free Speed: 4000rpm
Inlet Size: 3/8"BSP
Maximum Torque: 1200lb.ft(1632Nm)
Nett Weight: 5.6kg
Noise Power/Pressure: 104/93dB(A)
Operating Pressure: 90psi
Vibration/Uncertainty: 7.75/1.26m/s²
| Weight | 8.300000 |
|---|
-
