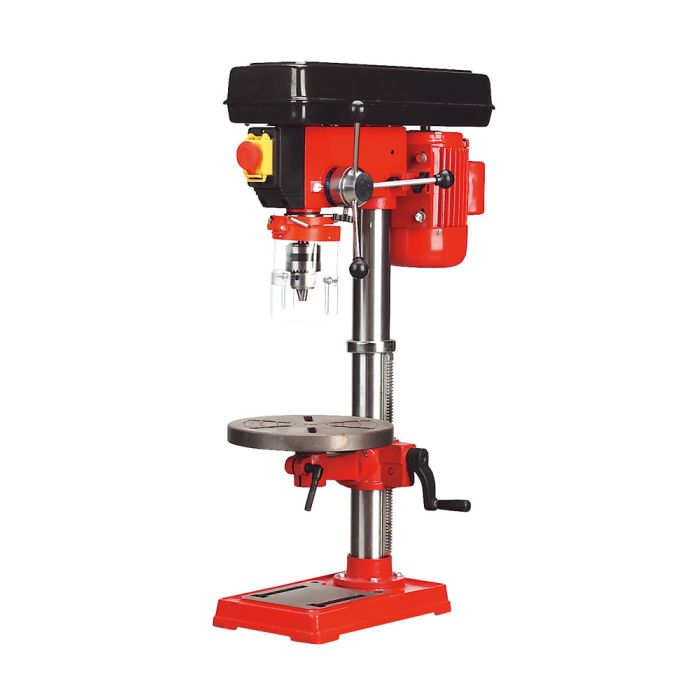

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. All machines meet CE Machinery Directive 98/37/EEC, Low Voltage Safety Directive 79/23/EEC and EMC Directive 89/336/EEC. Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments. Models GDM92B and up have Morse taper spindle housings for taking taper shank drill bits. All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection. All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work. Mortise attachments are available for all models GDM95B - GDM200F inclusive.

Drilling Capacity (Chuck Size): 16mm
Spindle Nose Taper: MT2
Swing: 314mm
Spindle Centre to Column: 127mm
Spindle Travel: 60mm
Number of Speeds: 12
Speed Range: 210-2580rpm
Maximum Distance Spindle to Table: 370mm
Maximum Distance Spindle to Base: 480mm
Working Table Surface Size: Ø250mm
Working Base Surface Size: 155 x 165mm
Overall Base Size: 340 x 210mm
Column Diameter: 60mm
Collar Diameter: 60mm
Overall Height: 840mm
Nominal Motor Power: 370W - 230V
Maximum Motor Power: 550W - 230V
Weight: 37kg
Optional Keyless Chuck: GDMX/KC
