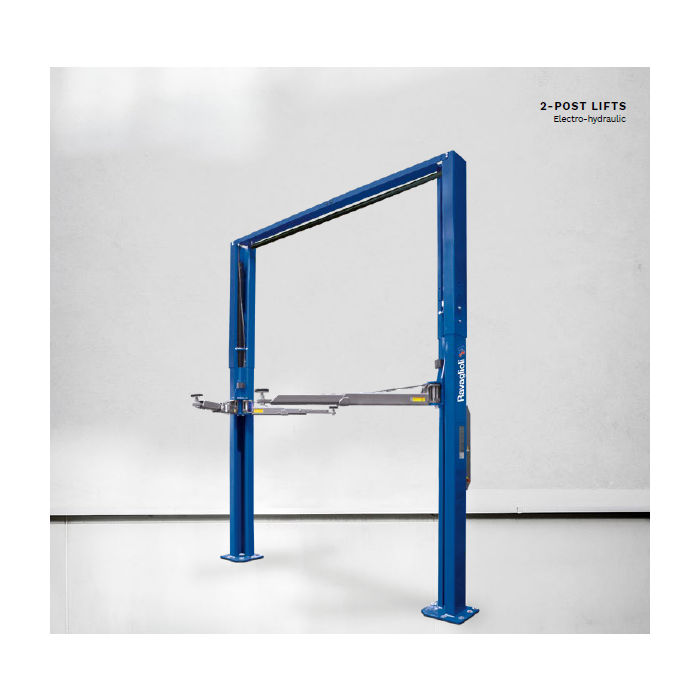

NEW 2 Post Electro-Hydraulic Lift 3500 Kilo Low Profile

Upgrade your workshop with the 2 Post Electro-Hydraulic Lift, part of the advanced Horizon Series. Built for precision, safety, and efficiency, this lift combines modern engineering with user-friendly features, making it an ideal solution for professional garages and service centres. Its low-profile design allows easy access to vehicles with reduced ground clearance while still offering powerful 3.5-tonne lifting capacity.

Key Features:

• Low Profile Arms: Perfect for vehicles with low clearance, ensuring safe and versatile lifting.
• Mechanical Safety Latch: Automatic engagement for maximum security when the lift is in a stationary position.
• Automatic Arm Locking: Locks during lifting and unlocks when arms reach the floor, providing ease of use and safety.
• Hydraulic Synchronisation: Perfectly synchronised carriages with rope-free alignment and enhanced lifting speed.
• Maintenance-Free Cylinders: Each column is equipped with a reliable, long-lasting lifting cylinder.
• Space-Saving Installation: Narrower setup option for workshops with limited space.
• Quick Installation: Designed for minimal setup time and maximum efficiency.
• Limit Switch Included: Prevents over-travel, ensuring safe operation.
• Wide Pad Adjustment: Greater flexibility for handling different vehicle types.

Specifications:

• Capacity: 3.5 Tonne (3500kg)
• Type: Electro-Hydraulic, Frame-Free Design
• Minimum Pad Height: 80mm
• Maximum Lifting Height: 2009mm+
• Minimum Building Height Requirement: 4250mm
• Safety Mechanism: Mechanical latch with auto-engagement
• Power Requirement: 3 Phase (400v) as standard
• Arms: 2 short & 2 long arms for adaptable installation
• Top Limit Switch: Standard inclusion
• Warranty: 12 Months

Optional Upgrades (at extra cost):

• Single Phase (230v) Conversion Kit
• High Lift Pad Kits

Installation Requirements:

• A suitable dedicated electrical supply with isolator (final connection by a qualified electrician).
• A level workshop floor (packing plates available if required).
• Load testing with a certified vehicle to meet British Standards (we can perform this at no extra cost if a suitable vehicle is available on installation day).

Additional Information:

• Service contracts & finance packages available.
• Price excludes delivery, building, or electrical works.
• Standard terms & conditions apply.
