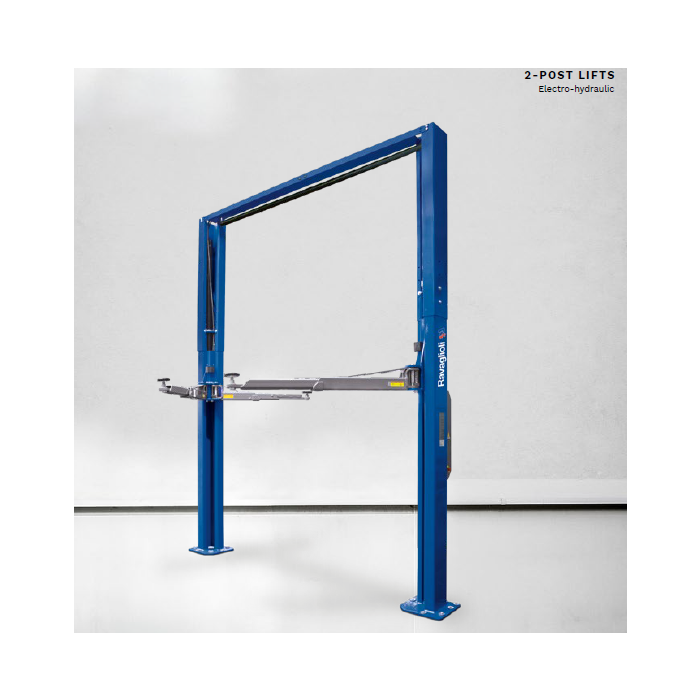

NEW 2 Post Electro-Hydraulic Lift 3500 Kilo
SKU
KPH35
ea (Each)
Hassle Free Returns
New Rav 2 Post Electro- Hydraulic Lift 3.5 Tonne fro the Horizon Series
* Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
* Automatic arm locking during lifting and automatic unlocking when the arms reach the floor.
* Synchronization cables grant the levelling of the two carriages.
* Each column features a maintenance-free lifting cylinder
* Enhanced lifting speed
* Perfect synchronisation of the carriages thanks to hydraulic system, rope-free alignment.
* Possibility of a narrower installation width for workshops with limited working space.
* Quick installation.
* Limit switch as standard.
* Wide pad adjustment.
Specification:
3.5 Tonne Capacity
Electro Hydraulic
Mechanical Safety Mechanism
Minimum Pad Height 102mm
Lifting Height Over 2011mm
Minimum Building Height Requirement 4250mm
Frame Free Design
Top Limit Switch
2 Short & 2 Long Arms For Space Saving Installation
12 Month Warranty
3 Phase (400v) Power Requirement
OPTIONS AT EXTRA COST:
Single Phase - 230v Power Requirement
High Lift Pad Kits
Service Contracts & Finance Available On This Product Please Ask For Details...
Price does not include delivery
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply
Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.
If you require additional information please do not hesitate to use the enquire button on this site and a member of our sales team will contact you to discuss your requirements in more detail
