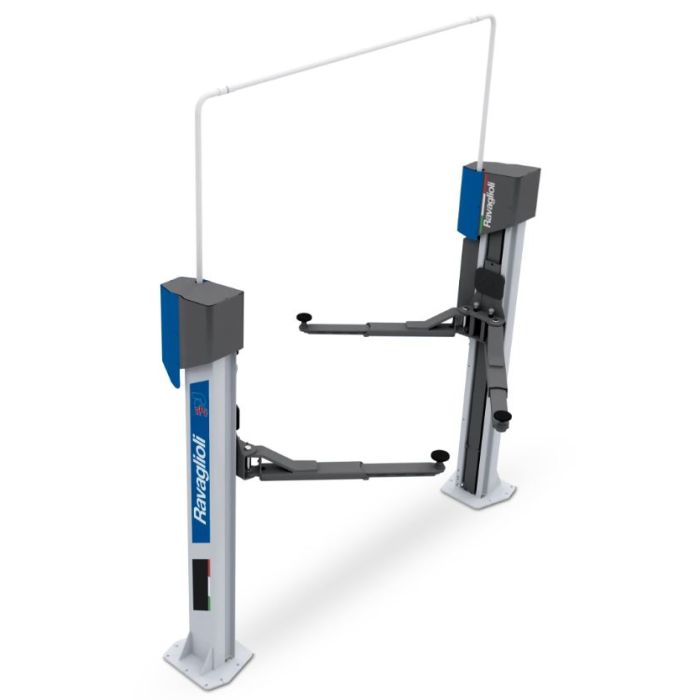

Ravaglioli 3.5 Ton Baseless 2 Post Lift

The Ravaglioli 3.5 Ton Baseless 2 Post Lift is designed for workshops that need maximum lifting capability without sacrificing floor space. With its baseless design and extra-low-profile arms, this lift is the perfect solution for servicing supercars, sports vehicles, and performance cars that standard lifts can’t accommodate.

Key Features & Specifications

• Lifting Capacity: 3500 kg (3.5 ton)
• Column Distance: 2900–3000 mm (expandable up to 3200 mm with optional kit)
• Extra-Low Arms: first stage 50 mm, second stage 65 mm, pads 83 mm
• Column Design: Symmetric, space-saving footprint
• Operation: Push-button controls with ergonomic placement
• Power: Equipped with special high-efficiency motors
• Warranty: 12 Months included

Built for Supercars & Low-Clearance Vehicles

Unlike traditional 2-post lifts, this model is built specifically for sports cars and high-performance vehicles. The ultra-low arms sit almost flush with the floor, ensuring safe and easy access to even the lowest clearance supercars.

• Four long, double-stage arms for secure lifting
• Parallel arm geometry for precision and safety
• Automatic conical arm locking system for peace of mind
• Minimum pad height just 83 mm, perfect for ultra-low vehicles

More Space, Less Hassle

Thanks to its baseless structure, this Ravaglioli lift creates a clear working area with no floor obstruction, giving technicians more freedom of movement and improved safety in the bay.

• Flexible installation with three adjustable width positions
• Quicker setup - up to 20% faster installation time
• Outrigger plates available for non-standard floors
• Minimal routine maintenance, reducing downtime

Premium Build & Long-Term Reliability

As part of the Ravaglioli Legend Series, this 2 post lift combines modern design with proven engineering. Each lift is tested for over 20,000 cycles, ensuring long-lasting performance for busy workshops.

• High-strength rolled steel screws
• Bronze main nut with extended lifespan
• Automatic and permanent nut lubrication system
• TEq-Link connectivity for future-ready workshop integration
