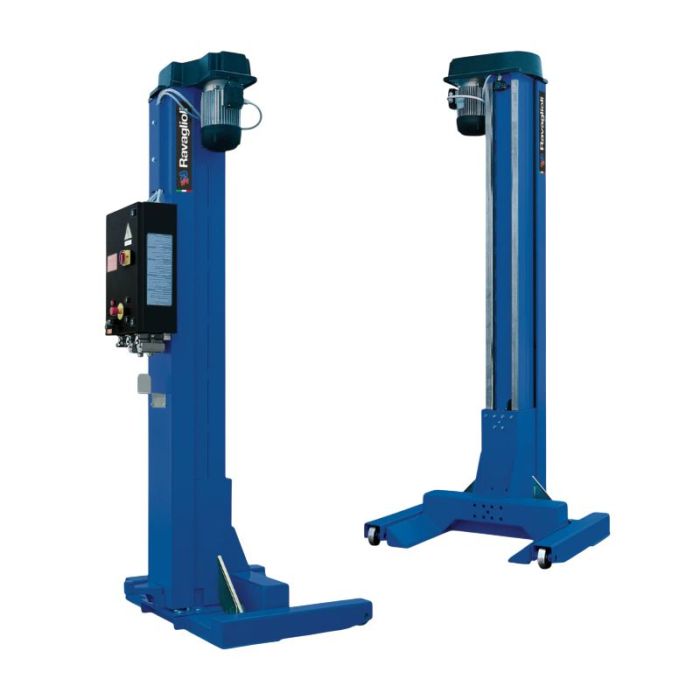

Mobile column lift RAV243
6 x 7.0 t, electromechanical, cable-bound, lift spindle, mobile, ideal for transporter, truck and mobile home

Description

6 Models with capacities ranging from 3 to 8,5 tonnes per column
2 Versions: indoor and outdoor installation
3 Configurations: 4, 6 or 8 columns
Large and solid base for maximum stability under load
Lifting spindles in rolled steel with bronze main and safety nuts
Columns in boxed sheet steel with rollers sliding profiles in high resistance steel
Steel rollers for carriage movement fitted on self-lubrificating bearings requiring no maintenance
Direct drive to the spindle by means of a self-braking motor-gear unit
Automatic lubrication of spindle and nuts
Safety: Mechanical and electrical safety devices comply with European Safety Regulations
Cut-out of lifting operation in case of wear of main nut
Thermal protection against motors overload
Electronic system ensuring synchronization of all columns (PLC programmable controller with self-diagnostic system)
Safety stop in case of malfunction
Possibility to select several operating modes:
Simultaneous operation of all columns
One or more pairs of columns
Single column
Electronic device selects automatically the correct main supply phase sequence
Low voltage controls (24 V) on all columns with deadman push buttons and safety interlock in case of interference in the activated control
Control panel of the main column featuring all controls
Secondary control panel, featuring lifting and lowering controls and emergency stop button
Possibility of setting a different height between pairs of columns
Modular electrical system enables various configurations (passing 4 to 6 to 8 columns, or creating two sets of 4 by splitting a set of 8)
