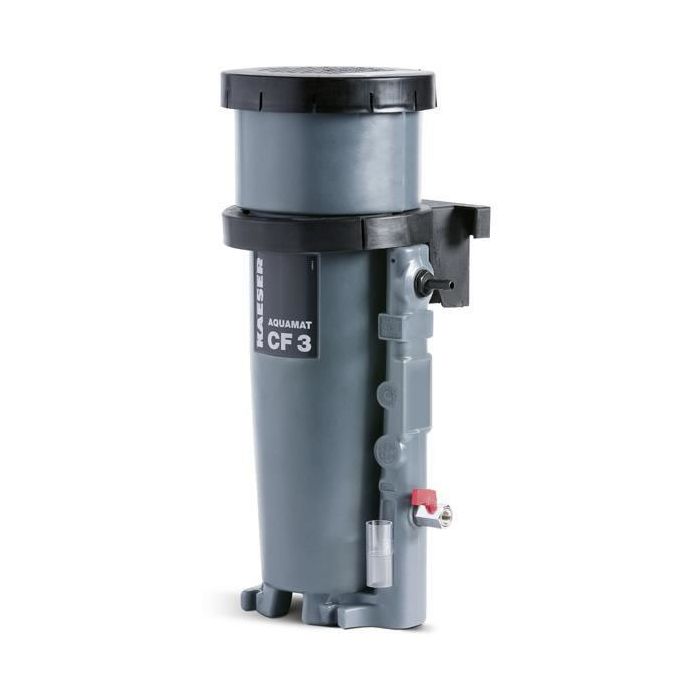

AQUAMAT CF3 Oil Water Separator

The AQUAMAT CF3 Oil Water Separator provides efficient separation of oil and water in compressed air systems, ensuring the removal of oil-contaminated condensate to prevent environmental pollution and equipment damage. This innovative solution incorporates a series of components designed to effectively operate with various compressor types and oil compositions in different climate zones.

Key Features

• System Design: The AQUAMAT CF3 consists of a pressure relief chamber for oil-containing condensate entry, a pre-separation tank for turbulence-free pressure release, and a removable particle catcher for capturing larger contaminant particles.
• Oil Collection: With gravitational settling in the separator tank, oil accumulates at the top and flows into the overflow-safe oil collection container for easy removal and disposal.
• Filtration: The condensate undergoes filtration through a prefilter to capture remaining oil particles before passing through the main filter cartridge for optimal separation results.
• Compact Design: The AQUAMAT CF3 features a compact construction, including connections for condensate inlet, water outlet, service valve, and oil drain, ensuring convenient installation and maintenance

Technical Specifications

• Dimensions: 290 x 222 x 528 mm
• Max. Flow Rate (Oil Types - Climate Zones 1-3): S-460, MOL, MOH, PAO, VCL m³/min VDL m³/min
• Tank Size: 659 x 939 x 1160 mm
• Heating Capacity: 230 V / 1 Ph / 50-60 Hz
• Mass: 659 kg

Climate Zones: 1 = Dry/Cool, 2 = Temperate, 3 = Humid

•          Climate zone 1 = Dry/cool (Northern Europe, Canada, Northern USA, Central Asia)
• Climate zone 2 = Temperate (Central and Southern Europe, some parts of South America, North Africa)
• Climate zone 3 = Humid (South-East Asian coastal regions, Central America, Oceania, Amazon and Congo regions)

Why choose the AQUAMAT CF3 Oil Water Separator

The AQUAMAT CF3 Oil Water Separator is an essential addition to compressed air systems utilising various compressor types and oil compositions in different climate zones. Its efficient oil-water separation capabilities and reliable design make it an ideal solution for ensuring compliance, protecting equipment, and preserving the environment.
