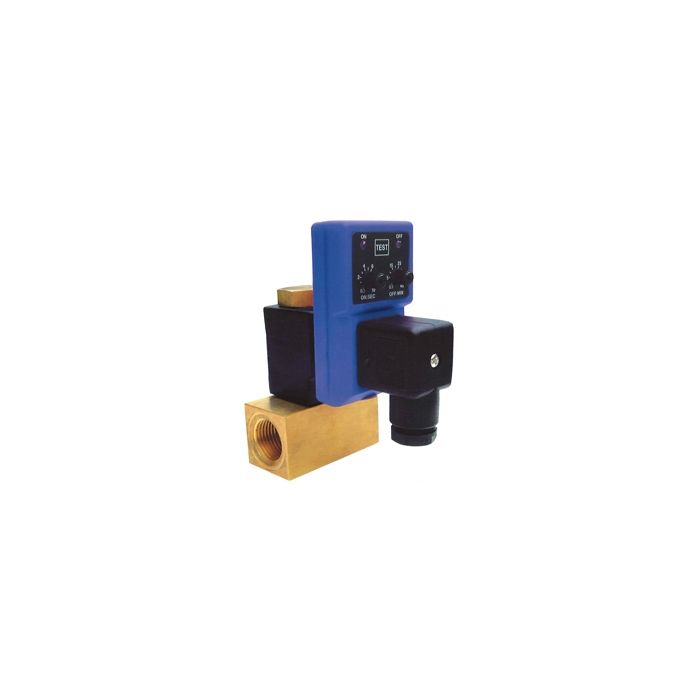

The HDTM 1 Automatic Condensate Drain is designed for use on filter housing, after coolers, dryers, pressure vessels, air recievers and compressors. This reliable auto drain is made of high quality brass arranged for precision whihc allows large pieces of dirt, metal and scale to be removed along with the condensate.

Key Features:
CE Marked
Fully Automatic - no maintenance
One model for all duties
simple to install
IP65 enclosure
Manual test switch
Adjustable interval and discharge times
LED indicators show operational status
Solid State timer for long life reliability
Rugged ABS timer housing
Small compact design

Timer Details:
Manual test switch
Pause time T2 - 0.5 to 45 Minutes
Work time T1 - 0.5 to 10 Seconds
Supply Voltage - 240 VAC +/- 10%
Current Consumption - 4mA Maximum
Environmental protection - IP65
Connection - 1 LED yellow to indicate the ON phase
Indicators - 1 LED yellow to indicate the OFF phase
