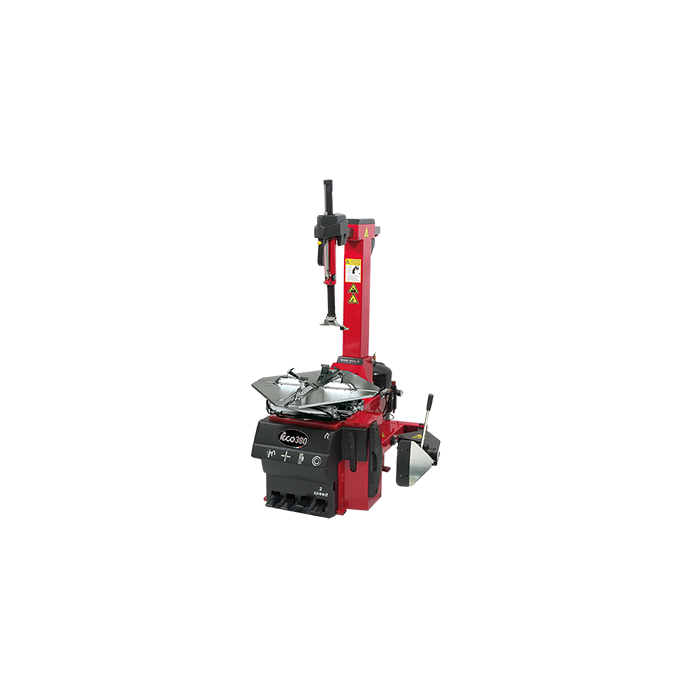

Automatic tyre changer conceived for industry professionals and suitable to handle car and van wheels having rim from 10” to 26”. His high robustness and reliability, the extractable pedal unit for easy maintenance activities, the double acting bead breaker cylinder, the reduced height from ground and the adoption of many patented technical solutions make this machine ideal to handle particularly tough or low profile tyres such as Run-Flat.

Available versions:

• with the tubeless inflating device (t.i. version)
• with 2-speed turntable (2 speed version)
• with traditional or pneumatic (P version) control of the working arm
• available also in configuration with the motoinverter (MI version)

Clamping capacity 10''-26''
External clamping capacity 10''-24''
Internal clamping capacity 13''-26''
Max wheel diameter 1.060 mm (42")
Max wheel width 370 mm (14,5")
Bead breaker force 2.900 Kgf (6.395 lbf)
Turntable speed 8 rpm (8-15 rpm 2sp)/ Single Speed
Noise level < 70 ± 3 dB(A)
Working pressure 8-10 Bar (116-145 psi)
1-phase el. motor 0,75 kW (1,0 Hp)

We also have a 3 phase model available. Please enquire for more information.
