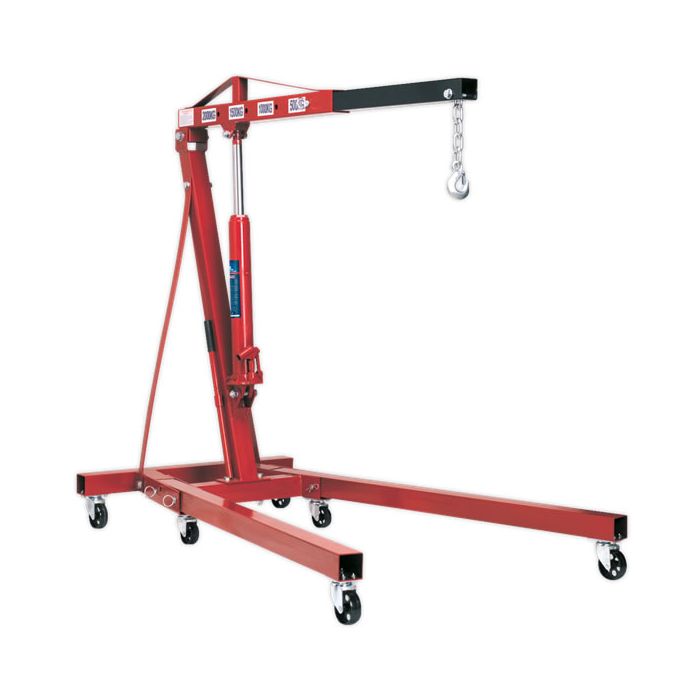

Sealey Folding Crane 2000kg Capacity

Lifts 2000kg at 930mm jib extension. Folds for easy storage, freeing valuable workshop space when not in use. Bottle jack type hydraulic unit for economy. Some self-assembly required.

Height Jib Down: 1440mm
Height Legs Folded: 1540mm
Height of Frame: 195mm
Length Legs Extended: n/a
Length of Jib Position 1: 930mm
Length of Jib Position 2: 1110mm
Length of Jib Position 3: 1200mm
Length of Jib Position 4: 1460mm
Length of Jib Position 5: n/a
Length: 1750mm
Lifting Capacity in Position 1: 2000kg
Lifting Capacity in Position 2: 1500kg
Lifting Capacity in Position 3: 1000kg
Lifting Capacity in Position 4: 500kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 2060mm
Max. Lift Ht at Jib Position 2: 2190mm
Max. Lift Ht at Jib Position 3: 2330mm
Max. Lift Ht at Jib Position 4: 2490mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 77kg
Rear Width: 850mm
Width Front Frame: 1055mm
Width Inside Front Frame: 915mm
