ART: 046-1457-GP0

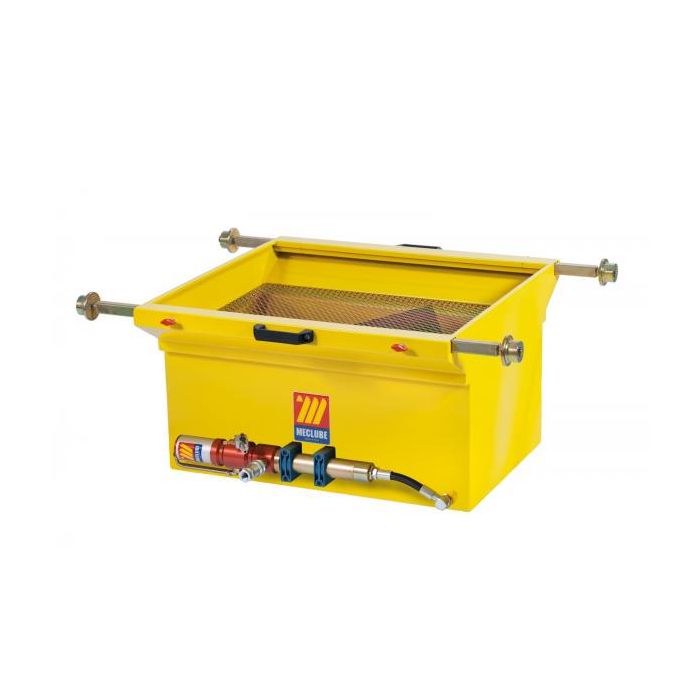

WHEELED SUCTION DRAINERS FOR EXHAUSTED OIL FOR PITS
Tank capacity 120 l

Equipped with:

Art.020-1165-000 Air-operated oil pump ratio=1:1

Breakwater grate on the base of the tank

Breakwater grate to drip the substituted oil filters

Adjustable wheeled supports (min 800 – max 1200 mm)

F 3/4” G exhaust ball valve

Art.F96-0500-004 Female quick disconnect coupling 1/2” G

Art.F96-0502-004 Male quick disconnect coupling 1/2” G

Details:
Exhausted oil drain units suitable for the fall recovery of oils of motors, transmissions and differential gears of lorries on pits. The tank is equipped with breakwater and anti-reflux grate ideal as a support to drip the substituted oil filters. The recovery exhausted oil can be transferred from the drain unit to the tank collection through an emptying pump connected to the fix system or directly assembled on the tank.

Gross weight 44 kg
Net weight 40.5 kg
