EV Lifting Table with Extractable Handle

Code :
KT100XT
ea (Each)
Hassle Free Returns

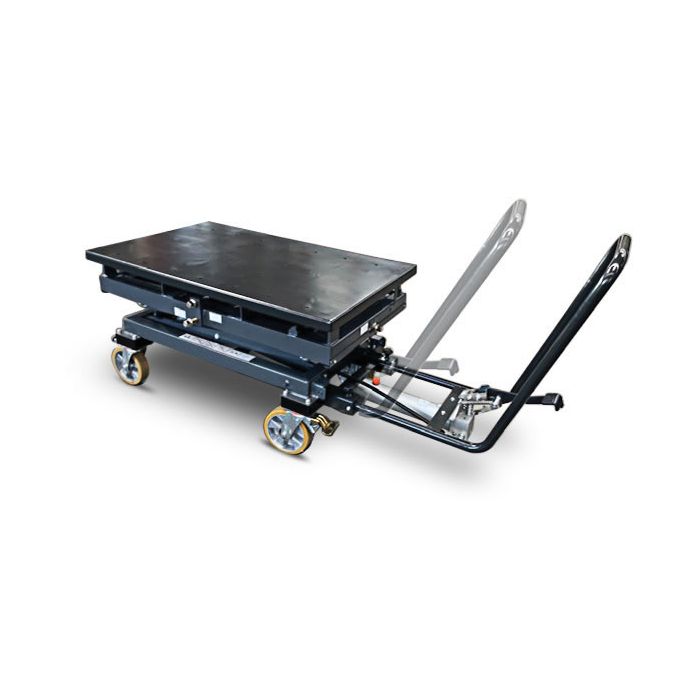

EV Battery Lifting table with Pull out Handle
This model is the same as KT100 but with the extractable handle. This allows moving the lifting table even when transporting a large, protruding battery in the lowered state.

This Heavy Duty lifting table is the ideal tool for the removal and maintenance of Electric Vehicle (EV) Batteries. However it is fully universal and can be used for safely removing and installing engines, gearboxes, HV batteries and chassis components from a wide range of manufacturers - simply the best and most comfortable workshop assistant!

• VARIODESK The supporting platform surface is not only extensive but also offers diverse adjustment possibilities
due to a flexibility of ± 20 mm in x and y-axle and a tilting angle of ± 2°

• SAFETY The generous base of the lifting platform ensures high stability and therefore enables safe and exact work.

• COMPLETELY FOOT-OPERATED The integrated descent brake valve allows an exact control of the lowering speed.
The load stroke is foot hydraulic.

• FULLY MOBILE Generously sized rollers - 2 fixed, 2 swivelling with integrated locking brakes - provide mobility at work.

CAPACITY 1000 kg
STROKE 1330 mm
LENGTH 1260 mm
WIDTH 720 mm
HEIGHT MIN 635 mm
HEIGHT MAX 1965 mm
WEIGHT 290 kg
ADJUSTMENT CAPACITY ± 20 mm
INCLINE CAPACITY ± 2°
More Information
Weight 290.00
  •


                  Sales Brochure #1
