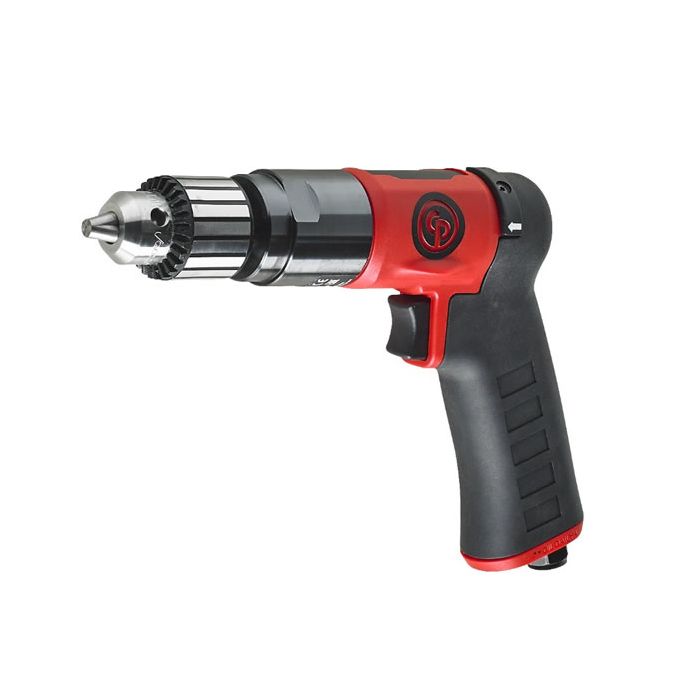

CP 3/8" Reversible Piston Drill

£83.68 £100.42
Code :
CP9790C
Hassle Free Returns
CP 3/8" Reversible Piston Drill

Features
Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Reverse lever on the top for easier access
handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal
Excellent for drilling, honing, reaming and hole sawing

Benefits
High Comfort
Ergonomics
Excellent Speed Control
High resistance to stalls
Great handling
Operator friendly
High durability
Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal


Specification
Air inlet thread size 1/4 "
Average air consumption 3.25 l/s 6.9 cfm
Box dimensions 242.5x172.5x53.5 mm 9.5x9.8x2.1 "
Chuck capacity 10 mm 3/8 "
Collet / spindle size 3/8-24 "
European Directives 2006/42/EC (17/05/2006)
European Sound standard ISO 15744
European Standards EN ISO 11148-3:2012
Free speed 2100 rpm
Free speed air consumption 13 l/s 27.5 cfm
Height 150 mm 5.9 "
Length 235 mm 9.3 "
Min. hose size 10 mm 3/8 "
Net weight 1.1 kg 2.4 lb
Over carton 1200x800x630 mm 47.2x31.5x24.8 "
Power 360 W 1/2 hp
Side to center 49 mm 1.9 "
Sound Power 98.5 db(A)
Sound pressure 87.1 db(A)
Stall torque 5 1/2 Nm 4.1 ft.lbs
Vibration <2.5 m/s²
Vibration ISO ISO-28927-5

Chicago Pneumatic No. 8941097900
