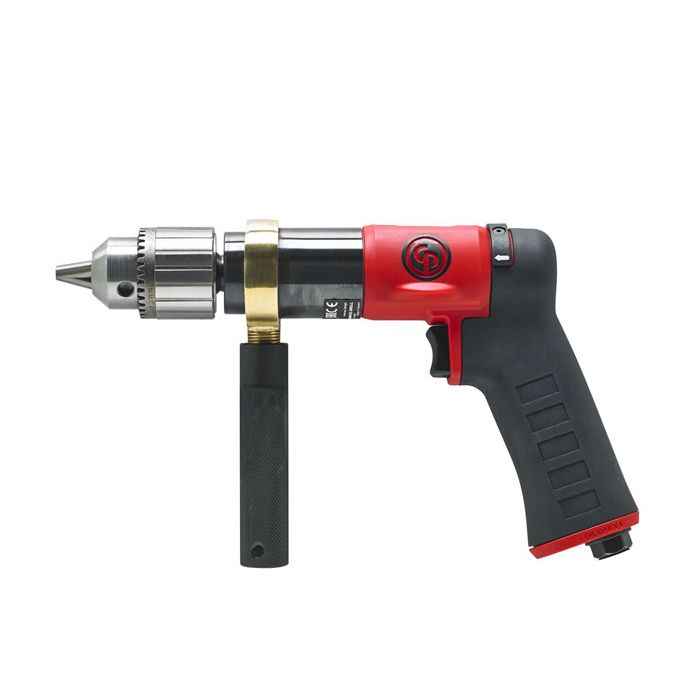

CP 1/2" Air Drill Pistol Grip

Features
Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Reverse lever on the top for easier access
handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
Keyed Metal
Excellent for drilling, honing, reaming and hole sawing


Metric Imperial
Model CP9789C
Part number 8941097890
Air inlet thread size 1/4 "
Average air consumption 3.25 l/s 6.9 cfm
Box dimensions 276x168x58 mm 10.9x6.6x2.3 "
Chuck capacity 13 mm 1/2 "
Collet / spindle size 3/8-24 "
European Directives 2006/42/EC (17/05/2006)
European Sound standard ISO 15744
European Standards EN ISO 11148-3:2012
Free speed 840 rpm
Free speed air consumption 13 l/s 27.5 cfm
Height 150 mm 5.9 "
Length 265 mm 10.4 "
Min. hose size 10 mm 3/8 "
Net weight 1.4 kg 3.1 lb
Over carton 1200x800x630 mm 47.2x31.5x24.8 "
Power 350 W 1/2 hp
Side to center 49 mm 1.9 "
Sound Power 99.3 db(A)
Sound pressure 88.3 db(A)
Stall torque 14 Nm 10.3 ft.lbs
Vibration <2.5 m/s²
Vibration ISO ISO-28927-5
