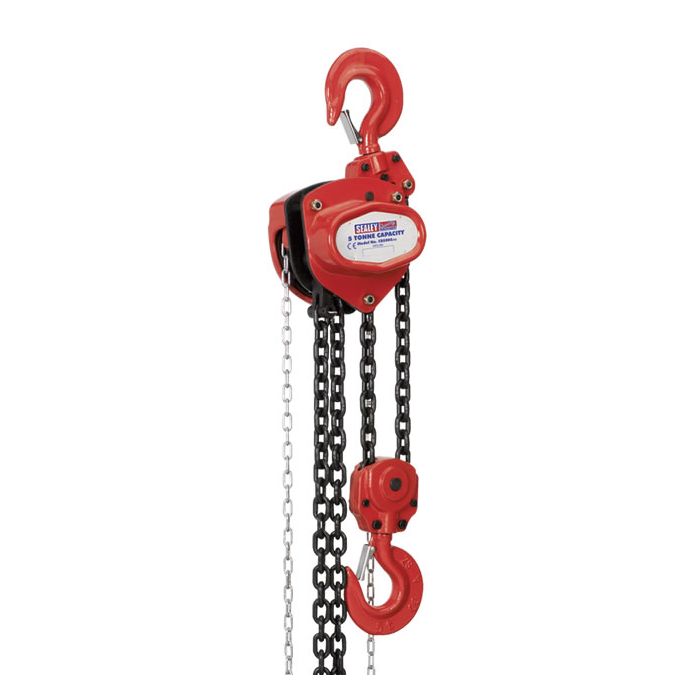

Chain Block 5tonne 3mtr

• Fitted with heat treated and ground, triple-spur geared shaft and pinion.
• Also includes mechanical load brake for extra safety.
• All chains are manufactured from hardened alloy material and load hooks feature safety latches.
• Compact gear housing allows use where headroom is limited.

Safe Working Load: 5000kg
Test Load: 7500kg
Standard Lift: 3mtr
Load Chain Diameter: Ø10mm
Pulling Effort: 42.22kgf
Head Room: 588mm
Overall Width: 186mm
Overall Depth: 253mm
Hook Aperture: 50mm
Maximum Hook Capacity Ø: 65mm
Weight: 43kg
