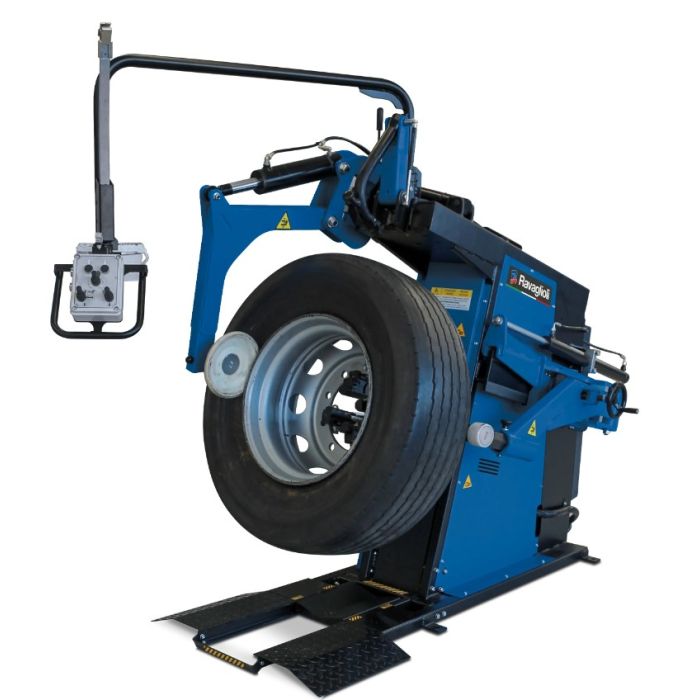

The GTB16EVO is a one of a kind. It is equipped with four rollers with unique form, positioned on the two sides of the wheel in drametrically opposite positions. With this system the dismount of the tyre with bead breakers is very simple and easy. The chucking unit is able to move clockwide and anticlockwise, plus up and down. The machine is equipped with a patented lever to ease mounting and dismounting.
The bead breakers are made in plastic material to prevent damage to the rim.

Chucking unit rotation motor (kW) 2
Hydraulic drive unit motor (kW) 1.5
Rim diameter 11" - 27 "
Max. allowed wheel diameter 1320mm (52")
Max. wheel width 540mm (21.2")
Weight 650kg
Bead Breaker Power 18000N
Max Wheel Weight 1200kg/2645 lbs
Max Torque to Chuck 2600Nm

Optional Accessories:
G108A42 - Tool extension lever
G108A40 - Shaft position lock
G108A2 - Alloy Protection (4x Kit)
G90A6 - Alloy rim clamp
G108A24 - Disc for wheels with locking ring
G108A9 - Plastic tool protection
