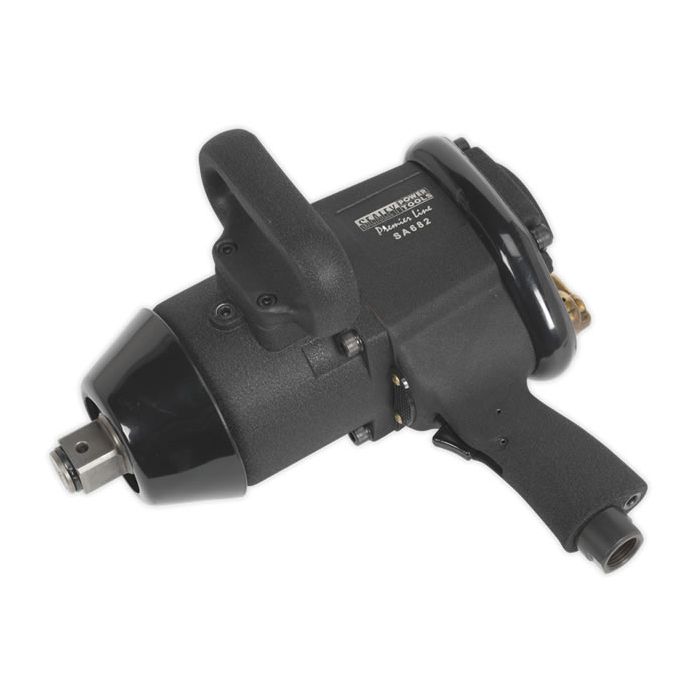

Air Impact Wrench 1" Super Duty
• 1"Sq Drive pistol grip air wrench suitable for commercial and agricultural vehicle use.
• Pin clutch gives high power-to-weight ratio.
• Four-position torque control with reverse.
• Supplied with side handle and spring balance hoop.
Model No: SA682
Drive: 1"Sq
Working Torque: 1400lb.ft(1904Nm)
Maximum Torque: 1600lb.ft(2176Nm)
Ultimate Torque: 1800lb.ft(2448Nm)
Free Speed: 3400rpm
Air Consumption: 12cfm
Operating Pressure: 90psi
Air Inlet Size: 1/2"BSP
Weight: 10.3kg
Noise Power/Pressure: 98/87dB(A)
Vibration/Uncertainty: 5.58/2.23m/s²
| Weight | 10.300000 |
|---|
-
             Â  Â
             Instructions #1         Â
                 Â             Download         Â     -
             Â  Â
             Parts list #1         Â
                 Â             Download         Â    Â
