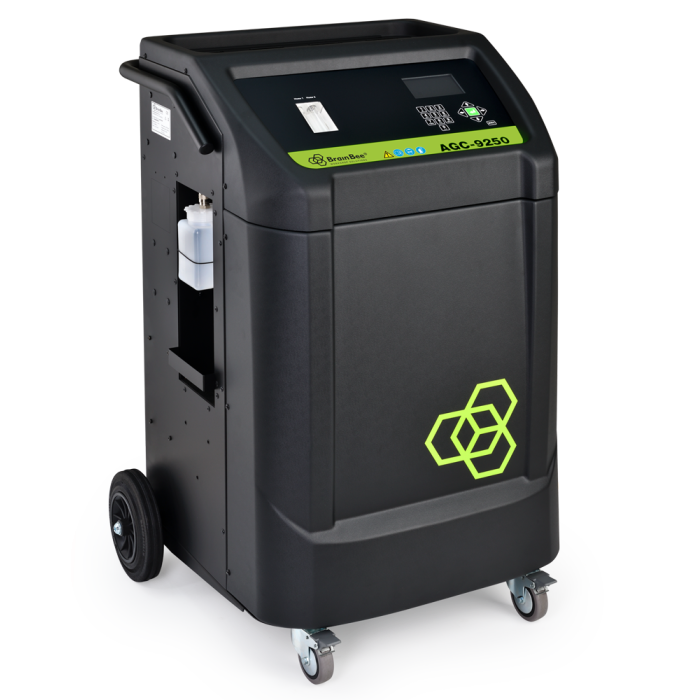

Experience the perfect blend of power and compactness with the AGC-9250 ATF Transmission Service Station. This innovative solution is tailored specifically for shops looking to enhance their ATF transmission service capabilities. Equipped with advanced electronics, this station seamlessly guides you through each operation phase, activating special functions to optimise the final results.



Key Features:






Integrated Database: Access technical information on oil quantity, type, tightening torques, and oil filter codes. The station also indicates the type of fittings needed for gearbox connection.




Automatic Oil Flow Detection: Prevents system damage by automatically detecting oil flow direction in the transmission.




Exclusive Software: The patented software guides recovery/recharge processes, ensuring maximum performance across all ATF transmission types.




ATF Remote Viewer App (Optional Extra): Operators can activate this app for real-time control over running steps.




Zero Cross-Contamination Function: Guarantees maximum control over new oil contamination through circuit cleaning and interchangeable oil canister systems.

Comes complete with Adaptopr Kit 1-17, a dust cover and on board database for 12 months.



Technical Data:







Control: Automatic, Software-assisted with 4.3" Color Touch Display and keyboard.




Oil Filter: 90µ mesh filter.




Sight Glasses: For visual inspection of oil quality.




Dipstick Function: Integrated with ø6mm and ø10mm hoses.




Hoses: 2 x 3m service hoses.




BOOST Function: Enhances performance.




Power Supply: 110/230V, 50-60Hz.




Menu Languages: Supports 15 different languages.




Service and Software Update: Through USB Type A or USB Type B.





Dimensions/Weight: 120 x 74 x 74 cm, 62 kg.

Optional Extras:


ATF Remote Viewer smartphone app for remote control.
Extra oil tank storage.
ATF Printer Kit
ATD Databank stick for 2nd year onward.
