75 Tonne Floor Press Professional

£4,817.00 £5,780.40
Code :
CP86750
EACH
Hassle Free Returns

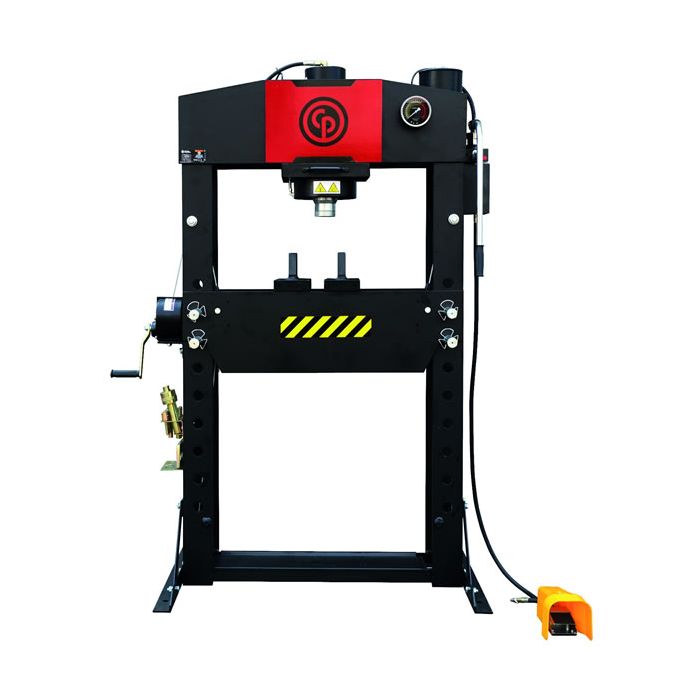

Professional & Heavy Duty Steel Framed Hydraulic Floor Press 75 Tonne Capacity

Pneumatic pump driven by foot
2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches

Capacity 75 ton(s) 82.68 short ton(s)
Dimension A 1140 mm 44.9 "
Dimension B 800 mm 31.5 "
Dimension C 1840 mm 72.4 "
Dimension E 800 mm 31.5 "
Dimension F 245 mm 9.6 "
Dimension F1 170 mm 6.8 "
Dimension F2 884 mm 34.8 "
Dimension M 260 mm 10.2 "
Dimension R 250 mm 9.9 "
European Standards EN 693:2001 + A2:2011
Net weight 498 kg 1097.9 lb
Oil capacity 4.5 ml

Chicago Pneumatic 8941086750
More Information
Weight 498.00
