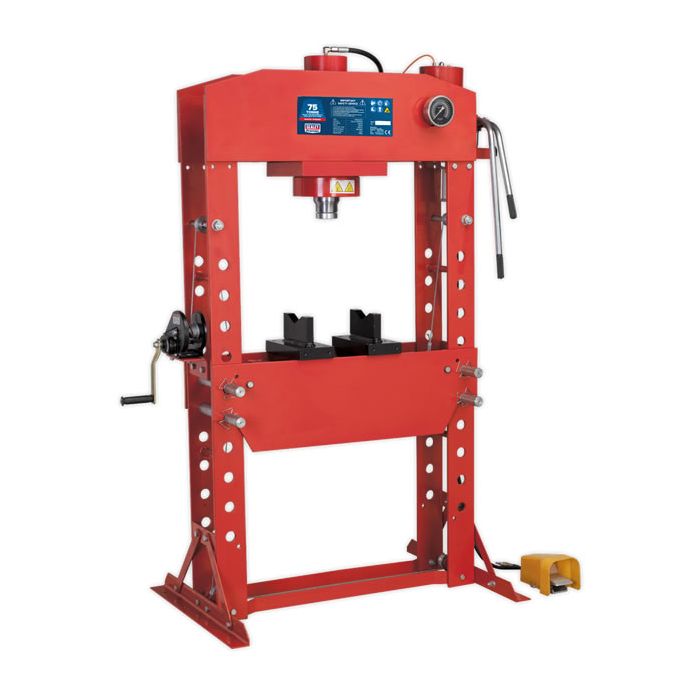

Sealey Air & Hydraulic Press 75 tonne Floor Type with Foot Pedal.

Heavy duty steel frame construction with side mounted air motor powering hydraulic pump unit.
2-Speed manual operation.
Sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge.
Supplied with flat pressing plate/V-blocks.

Specification
Air Consumption: 9cfm
Bench or Floor Mounting: Floor
Capacity:75 tonne
Gauge Included: Yes
Lateral Ram Travel: 260mm
Maximum Height - Ram to Table: 884mm
Minimum Height - Ram to Table: 170mm
Nett Weight: 451kg
Overall Height: 1925mm
Ram Diameter: Ø93mm
Ram Stroke: 250mm
Table Aperture: 251/201mm
Type:Air/Hydraulic
Working Pressure:108-123psi
Working Table Depth: 279mm
Working Table Width: 1020mm

Optional Extras/Accesories
YKSG75 - Safety Guard, YKPP8 - Press Pin Set
