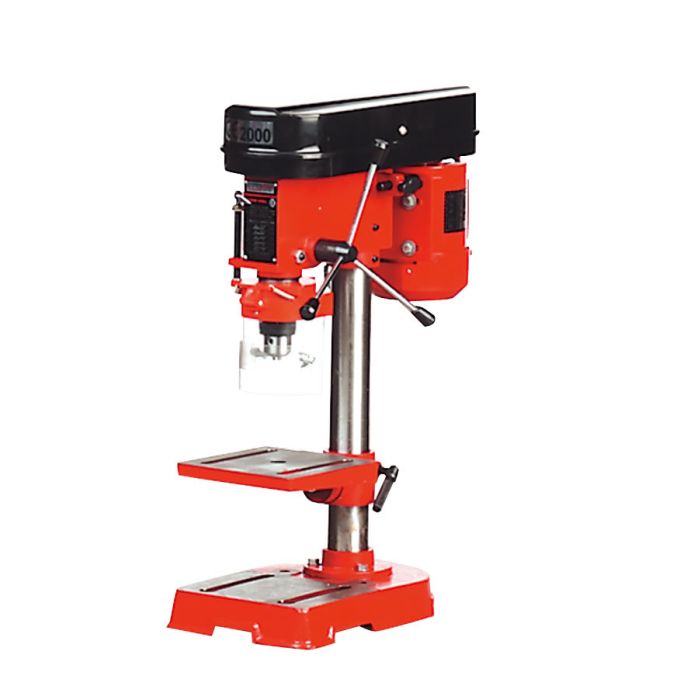

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Regulations 1992 (and amendments). Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments. Models GDM92B and up have Morse taper spindle housings for taking taper shank drill bits. All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection. All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work. Mortise attachments are available for all models GDM95B - GDM200F inclusive.

Drilling Capacity (Chuck Size): 13mm
Spindle Nose Taper: JT2-1/2
Swing: 256mm
Spindle Centre to Column: 105mm
Spindle Travel: 50mm
Number of Speeds: 5
Speed Range: 650-2800rpm
Maximum Distance Spindle to Table: 208mm
Maximum Distance Spindle to Base: 293mm
Working Table Surface Size: 162 x 158mm
Working Base Surface Size: 140 x 180mm
Overall Base Size: 198 x 310mm
Column Diameter: 46mm
Collar Diameter: 42mm
Overall Height: 583mm
Nominal Motor Power: 170W - 230V
Maximum Motor Power: 330W - 230V
Weight: 18kg
