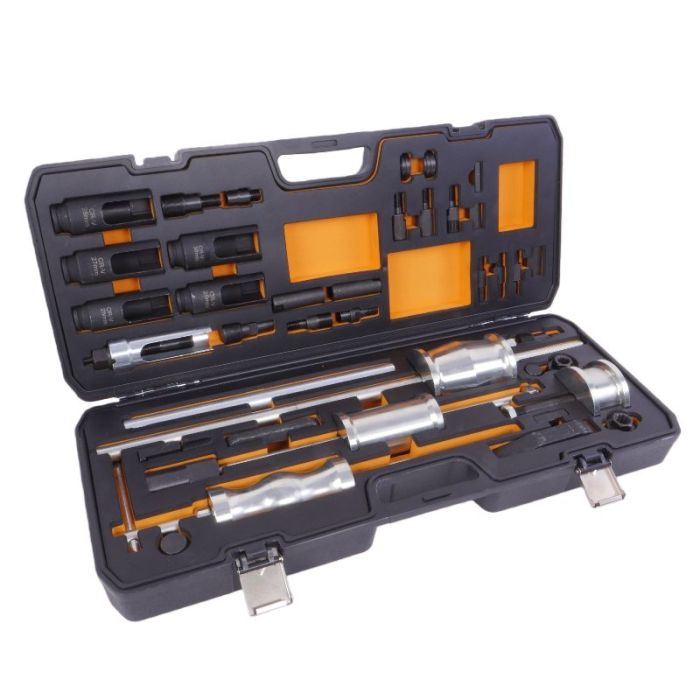

The Gear4Garage 40 Piece Diesel Injector Master Remover and Extractor Set is a comprehensive professional workshop kit designed for the safe and controlled removal of diesel injectors across a wide range of vehicle applications.
The kit includes three slide hammers in varying weights and lengths — 1.6kg at 160mm, 2.7kg at 460mm and 5.1kg at 600mm — giving the technician the flexibility to match the extraction force and reach to the specific injector removal job in hand. Two pulling claws with fork openings in sizes 13.7x18mm at 105mm length and 12.7x19mm at 130mm length provide additional extraction options for different injector configurations.
Five slotted six point 1/2 inch drive sockets at 100mm length in sizes 25mm, 27mm, 28mm, 29mm and 30mm are included for direct injector socket removal, alongside an injector extractor in sleeve design with shells featuring an outer diameter of 35mm, internal diameter of 29mm and M17x1.0 spindle for precise and controlled extraction.
The adapter range covers pulling adapters with external thread M27x1.0 in three pieces and M25x1.0, plus pulling adapters with internal thread M27x1.0 in three pieces, and a sliding hammer adapter for inner, outer and claw extractor configurations — ensuring compatibility with the majority of diesel injectors encountered in professional workshop use.
Whether working on common rail, direct injection or HDi diesel engines, the Gear4Garage 40 Piece Diesel Injector Master Remover and Extractor Set provides the complete range of tools required to remove stubborn and seized injectors safely without damage to the injector bore or surrounding engine components.
