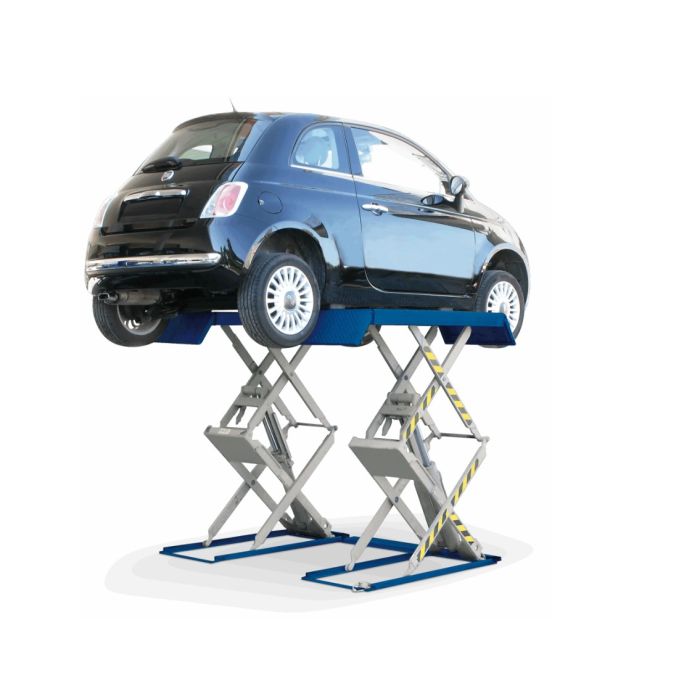

Ravaglioli Extra low version (100 mm) Electro-hydraulic scissor lift. The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers. The lift is strongly recommended for vehicles with variable height, or damaged suspensions.

Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
All pivot points made with self lubricating bushings for long life
Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
Controlled speed during initial lifting and final lowering phase
Audible alarm during the final lowering phase
Forged scissors ends to grant maximum resistance to load

3500 Kilo Capacity
Electro Hydraulic
Air Locking Safety Mechanism
Lifting Height 1900mm
Surface Installation - Minimum Height 100mm
Adjustable Platform Length
12 Month Warranty
3 Phase (400v) Power Requirement
** Please Note This Lift Requires Provision Of A Compressed Air Supply **

OPTIONS AT EXTRA COST
Single Phase - 230v Power Requirement

Service Contracts & Finance Available On This Product Please Ask For Details...

Price Includes For Delivery & Installation To A UK Mainland Site. Price Does Not Include For Any Building Or Electrical Work That May Be Required. Our Standard Terms & Conditions Apply.

Technical Data
Capacity: 3500 kg
Max. lifting height: 1900 mm
Lifting time: 37 s
Lowering time: 40 s
Drive-on-height: 100 mm
Length of platforms: 1943 mm
Width of platforms: 610 mm
Height of platforms: 100 mm
Space of platforms: 800mm
Driving power: 1x2.6 Kw
Noise level: ≤70 dB(A)
Length: 1950 mm
Width: 2020 mm
Height: 1900 mm
Weight: 750 kg
Type of installation: Surface Mounted
