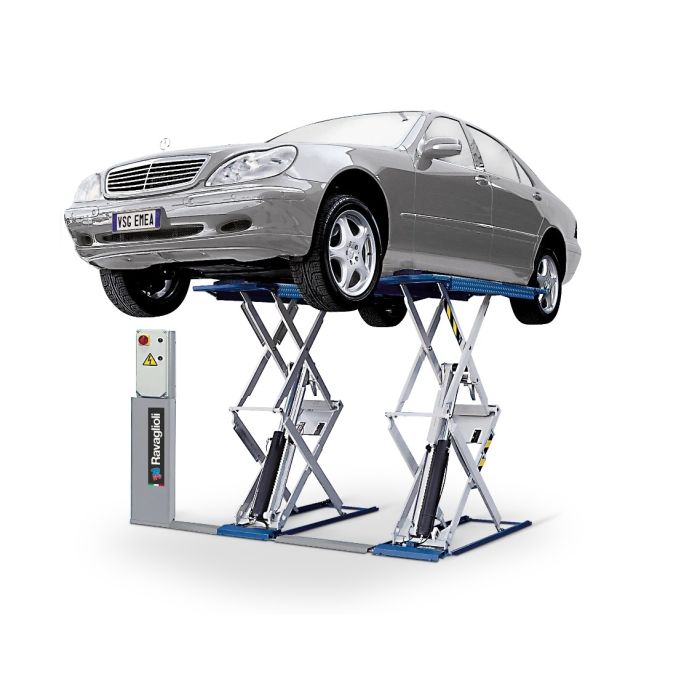

Ravaglioli Extra low version (100 mm) Electro-hydraulic scissor lift. The minimum height (100 mm) from the floor guarantees easy and rapid positioning of the vehicle on the lift. The limited space required by the lift improves safety of the working area. Ideal for mechanical repairs, tyre shops and rapid fit facilities. It is also a good choice for service reception areas.

Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
All pivot points made with self lubricating bushings for long life
Hydraulic levelling system by means of a patented synchronisation device assures constantly levelled lifting platforms regardless of weight distribution
No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
Controlled speed during initial lifting and final lowering phase
Audible alarm during the final lowering phase
Forged scissors ends to grant maximum resistance to load

3000 Kilo Capacity
Electro Hydraulic
Air Locking Safety Mechanism
Lifting Height 1900mm
Surface Installation - Minimum Height 100mm
Adjustable Platform Length
12 Month Warranty
3 Phase (400v) Power Requirement
** Please Note This Lift Requires Provision Of A Compressed Air Supply **

OPTIONS AT EXTRA COST
Single Phase - 230v Power Requirement

Service Contracts & Finance Available On This Product Please Ask For Details...

Price Includes For Delivery & Installation To A UK Mainland Site. Price Does Not Include For Any Building Or Electrical Work That May Be Required. Our Standard Terms & Conditions Apply.

Technical Data
Type of installation: Surface Mounted
Rated load capacity: 3000kg
Max. lifting height :1900mm
Lifting time loaded: 37s
Lowering time loaded: 40s
Drive-on-height: 100mm
Length of platforms: 1943mm
Width of platforms: 610mm
Driving power: 2,6kW
Power supply: 230/400 V | 50 Hz
