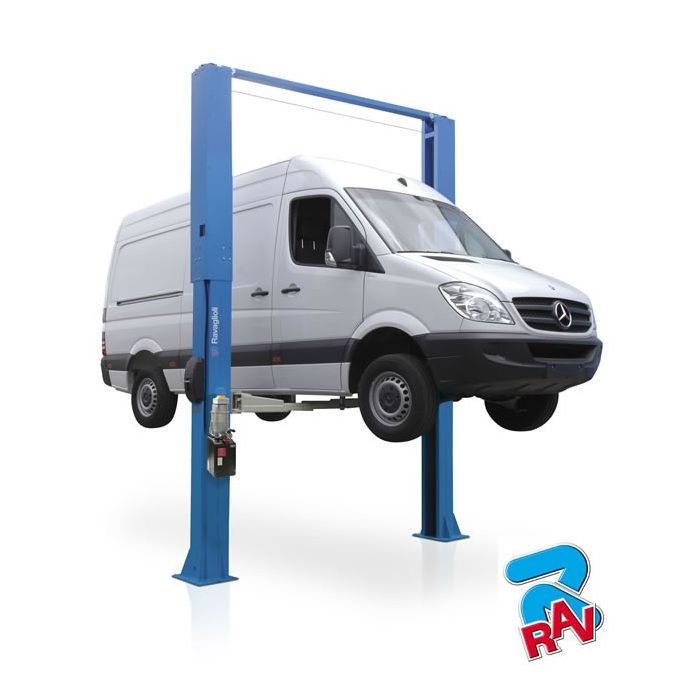

5 Tonne Hydraulic 2 Post Lift Ravaglioli with 4 Long 3 Stage Arms For Van Applications

* Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
* Automatic arm locking during lifting and automatic unlocking when the arms reach the floor.
* Synchronization cables grant the levelling of the two carriages.
* Each column features a maintenance-free lifting cylinder.
* Laser cut carriages and arms – robot welding.
* Easy to adjust cables.
* Specially manufactured high efficiency motors.
* Extra resistant column design
* Exclusive 10+ 8 bending design to ensure max resistance to load.

Specification:

5000 Kilo Capacity
Electro Hydraulic
Mechanical Safety Mechanism
Minimum Pad Height 95mm
Lifting Height Over 2000mm
Minimum Building Height Requirement 5200mm
Frame Free Design
Top Limit Switch
4 Long Arms For Van Applications
4900mm headroom
12 Month Warranty
3 Phase (400v) Power Requirement

OPTIONS AT EXTRA COST:
Single Phase - 230v Power Requirement
High Lift Pad Kits

Service Contracts & Finance Available On This Product Please Ask For Details...

Prices include for delivery to a UK mainland destination
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply

Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.
