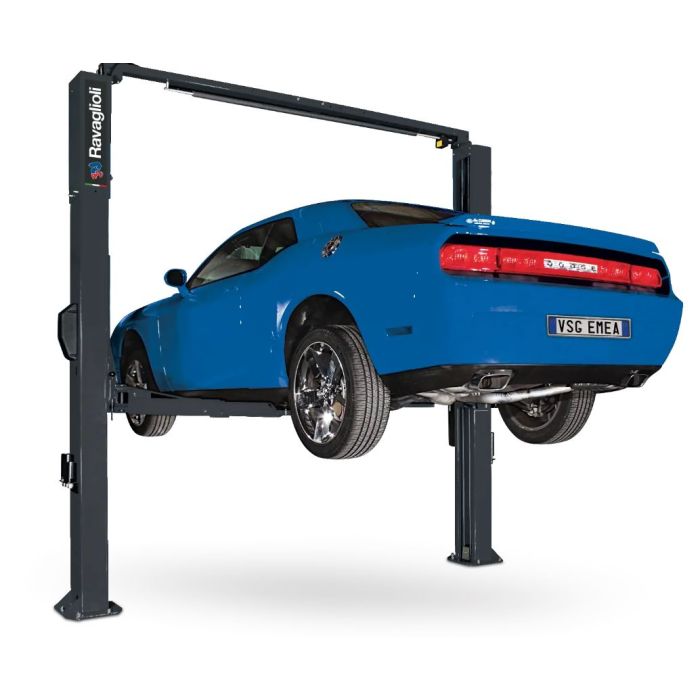

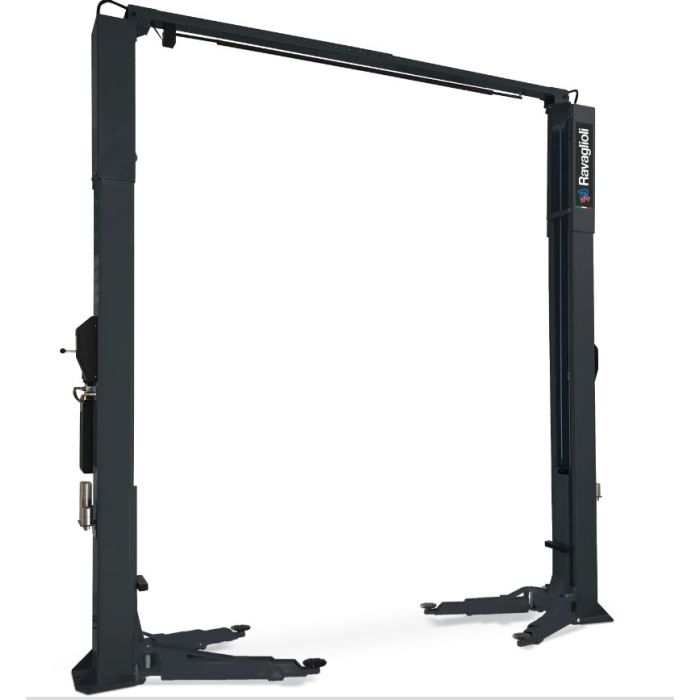

Electrohydraulic 2-post lift without base, with asymmetric arms and symmetric posts that enable an easy access to the pick-up points of the vehicle.

Shut-off bar to prevent damage caused by lifting high vehicles.
Two pistons for intensive use designed to minimise down-time, by requiring little maintenance.
Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
Manual release by lever.

Arm safety locking with automatic engagement and automatic release when the arm reaches the floor.

Capacity- 4,500kg
Max. Lifting height-1863mm, (1,928mm with extensions)
Lifting time-54s
Min Pad height- 100mm
Max Pad height-136mm
Column distance-2916mm
Drive through width-2,659mm
Max usable height-3,850mm
Surface coasting-powder coated
Arm layout-asymmetrical
Telescopic front arms-3 stages short
Telescopic rear arms-2 stages long
Min front arm length- 611mm
Max front arm length-1,131mm
Min rear arm length-802mm
Max rear arm length-1,235mm
Width-3,486mm
Height-4,000mm
Weight-750kg
Motor: 2.2KW
3 Phase
