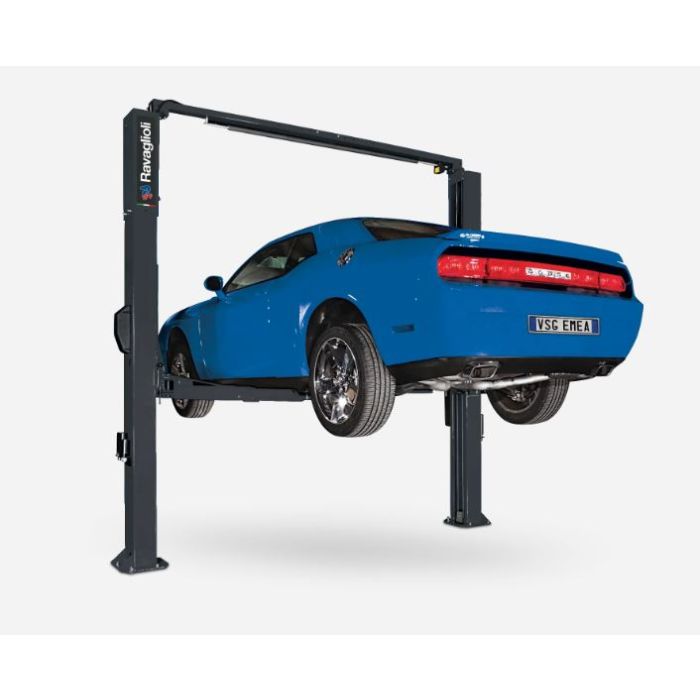

Electrohydraulic 2-post lift without base, with asymmetric arms and symmetric posts that enable an easy access to the pick-up points of the vehicle.

Shut-off bar to prevent damage caused by lifting high vehicles.
Two pistons for intensive use designed to minimise down-time, by requiring little maintenance.
Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
Manual release by lever.

Arm safety locking with automatic engagement and automatic release when the arm reaches the floor.

Capacity- 4,000kg
Max. Lifting height-1863mm, (1,928mm with extensions)
Lifting time-54s
Min Pad height- 100mm
Max Pad height-136mm
Column distance-2764mm
Drive through width-2,506mm
Max usable height-3,850mm
Surface coasting-powder coated
Arm layout-asymmetrical
Telescopic front arms-2 stages
Telescopic rear arms-2 stages
Min front arm length- 715mm
Max front arm length-1,051mm
Min rear arm length-775mm
Max rear arm length-1,138mm
Width-3,334mm
Height-4,000mm
Weight-7525g
Motor: 2.2KW
Single Phase
