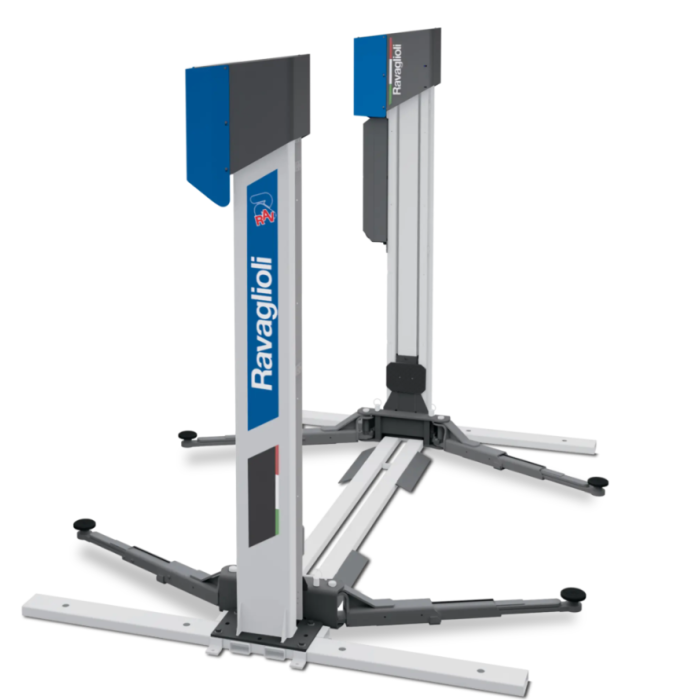

Legend Series – From History to the Future

Electronic synchronization.
Short 3-stage arms and long 2-stage arms with quick fit telescopic rubber pad.
Wide rubber protected areas.
The geometry of the arms was designed to lift anything from city to longwheelbase cars.
Internal carriages running on lubricated sliding guides, protected from the external environment, that ensures a longer life to the sliding elements.
The new column geometry allows for quick replacement of the nut.
Equipped with an acoustic anti toe trap system. Free from mechanical foot guards.
Premium quality of components.
Teq-link

Aluminium pulley with self-ventilating cooling function.
Long lasting bearings.
50% longer, bronze load nut.
Motors with reinforced and cooling casing.
Solid automatic arm locking.
The base has been designed to ensure maximum stability even on surfaces that are not perfectly level, thus offering greater flexibility during installation.
The compact design optimizes workshop space, making it the ideal solution for environments with limited space.
Minimum routine maintenance. The operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements.
Guaranteed safety and quality over the time. The lift is equipped with premium components that guarantee durability and maximum safety for the operator.

Technical
Number of columns 2
Capacity 3200kg
Column layout Symmetrical
Mode of drive Electromechanical
Control Electric
Type of installation Surface mounted
Max. lifting height 2031mm
Lifting time 42s
Min. plate height 88mm
Max. plate heigh 156mm
Clear span between 2766mm
Clear span between (out) 3160mm
Column height 2839mm 2914mm
Drive-through width 2468mm
Required ceiling height 4050mm
