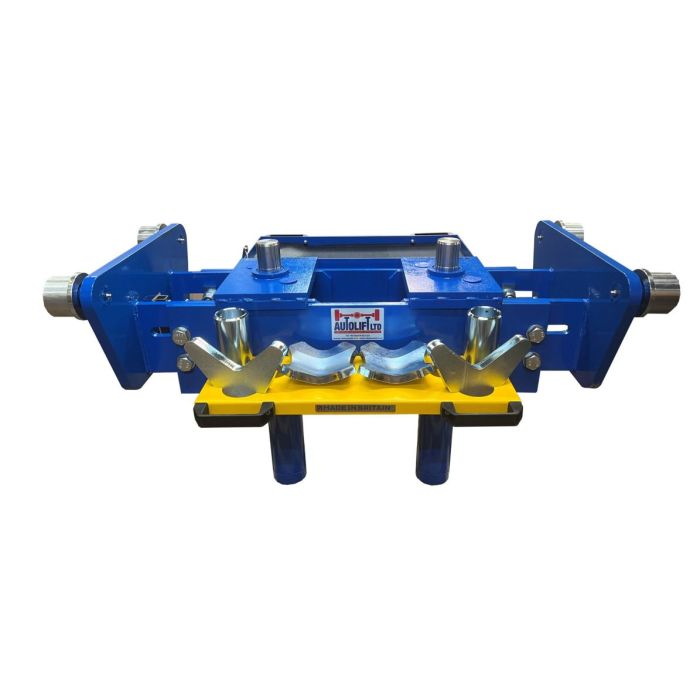

This model of commercial inspection pit jack is available in a 13 Tonne or 20 Tonne capacity.

· 400mm lifting stroke
· Available in 3 sizes with a large range of adjustment (see table) for excellent versatility.
· Fast acting air pump
· Air over oil hydraulic design allows for increased performance and longevity of cylinder lifespan.
· Ergonomic handles to move the pit jack along the pit with ease.
· Tool tray to provide an easily accessible place for your tools or parts while working on a job.
· Cylinders can be operated independently and transversely sliding rams for accurate positioning.
· Suitable for ATF & MOT test lanes.
· Triple layer of safety features – Safety Lowering Valves, anti-burst valves & ram lock-off handles. (Security Struts can also be added as an optional extra to provide additional layer of security to the user). Security Stuts can be easily retrofitted after the jack is already in the pit with minimal equipment downtime.
· Each inspection pit jack comes with included in the price with; 2x 125mm Extensions, 2x Vee Head Adapters, 2x Dish Head Pansies, Rear Adapter Rack Holder & Air Blow Gun.
· UKCA / CE marked, conforms to EC regulations.
· Covered by a 5 year warranty.

The range of adjustment for each frame size is;
SMALL - PIT MIN: 750MM PIT MAX: 1030MM
MEDIUM - PIT MIN: 860MM PIT MAX: 1160MM
LARGE - PIT MIN: 1110MM PIT MAX: 1410MM

Capacity: 10T PER RAM

Beam: Covering pit widths from 750mm - 1400 mm. See table above for most suitable frame size or contact us.

Wheels: The beam moves on four wheels, which have needle roller bearings to ensure ease of movement up and down the length of the pit. Parallel wheels are fitted as standard to suit flat angle pit edges with tapered wheels as an alternative for use on RSJ supporting rails. Spring loaded wheels can also be provided, these retract when the jack is under load so locking its position.

Power Pack: A high output hand pump complete produces the high output flow to the cylinders.

Rams: The two double acting hydraulic cylinders have a 400 mm stroke. Top quality chrome plated rods are used as well as the latest seal technology to ensure a long and trouble free life. Each cylinder is fitted with safety hose burst valve and a 90 degrees movement isolation valve for easy visual confirmation of its position.

Warranty: 5 Year warranty (T&Cs Apply).

All jacks designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard: BS EN 1494:2001 (Materials handling equipment), complies with EC requirements and LOLER lifting regulations. Each unit is fully tested, marked with serial number and supplied with a test certificate.
